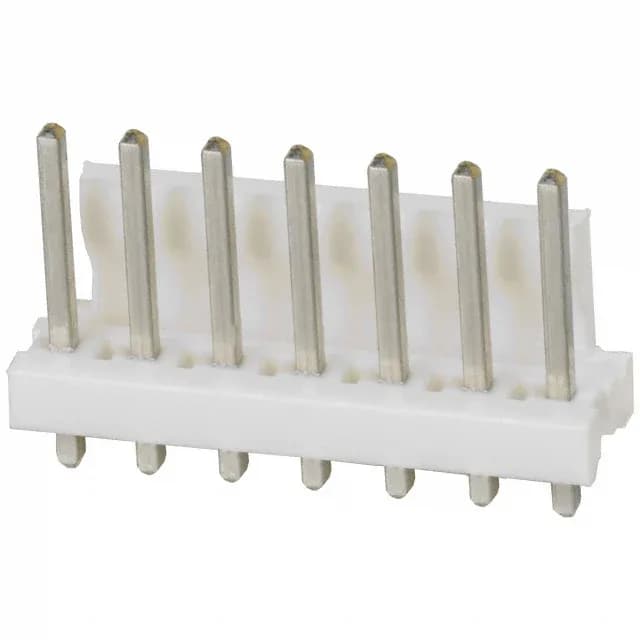

TE Connectivity AMP MTA-156 header, 640445-7, 7 positions, 3.96mm pitch, shrouded 1 wall, friction lock, through-hole solder termination, tin-plated male pins, UL94 V-0 natural housing.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.425\" (10.80mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.650\" (16.51mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
The 640445-7 is a 7-position, single-row, through-hole header from TE's MTA-156 series. The shrouded 1-wall design protects the 0.400" (10.16mm) mating pins from damage during handling and guides the mating receptacle into alignment.
The 600VAC voltage rating covers most low-voltage industrial power and signal circuits.
