TE Connectivity AMP Connectors 640445-9 — Pin Headers

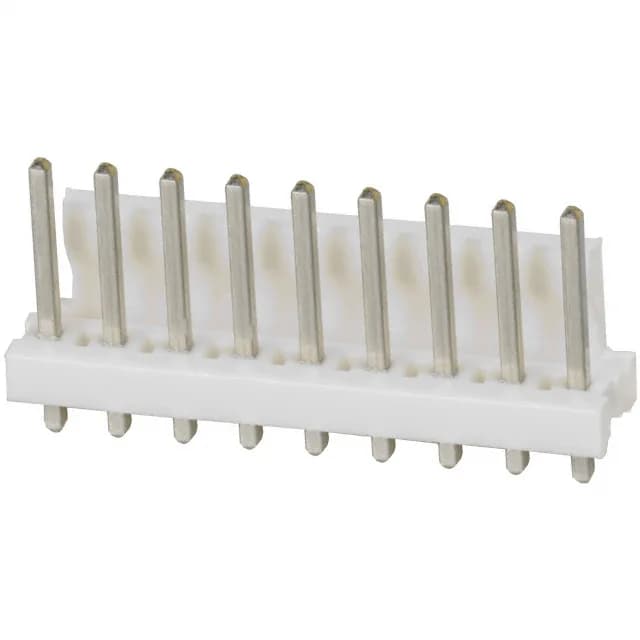

640445-9 TE Connectivity MTA-156 Header 9 Pos 3.96mm Pitch

MPN640445-9
Active

TE Connectivity AMP Connectors MTA-156 header, 640445-9, 9 positions, 0.156" (3.96mm) pitch, shrouded-1 wall, friction lock, through-hole solder, tin contacts, UL94 V-0, active production.

$0.6700Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMTA-156
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

640445-9 key specifications
ParameterValue
SeriesMTA-156
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating600VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.425\" (10.80mm)
Insulation materialThermoplastic, Glass Filled

All specifications

640445-9 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions9
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Overall contact length0.650\" (16.51mm)
Contact finish - matingTin
Contact length - mating0.400\" (10.16mm)

Product details

640445-9: MTA-156 9-Position Header with Friction Lock

Board Fit: Pitch, Pin Length, and Mounting

Through-hole solder termination with a contact length - post of 0.125" (3.18mm) — this is the depth the pin extends below the PCB surface after soldering. The natural (white) thermoplastic, glass-filled housing is UL94 V-0 rated.

Peer Comparison: 1-292164-1 vs 640445-9

The 1-292164-1 is a different connector entirely — it is an 11-position, 2.00mm pitch header from the CT series, with a 4-wall shroud and a detent lock. The 640445-9 runs at 3.96mm pitch and carries a friction lock. These are not form-fit-function equivalents: the pitch and position count differ, so a board spin would be required to swap.

Frequently asked questions

What is the pitch of the 640445-9?

The pitch is 0.156" (3.96mm). This sets the hole spacing on the PCB for the through-hole pins.

Is the 640445-9 shrouded?

Yes, it is shrouded on one wall (shrouded - 1 wall). This provides partial pin protection and guides the mating receptacle during insertion.

Does the 640445-9 have a friction lock?

Yes, it uses a friction lock to secure the mated connector pair, providing vibration resistance in industrial harness applications.

Is the 640445-9 RoHS compliant?

Yes, it is RoHS compliant.
