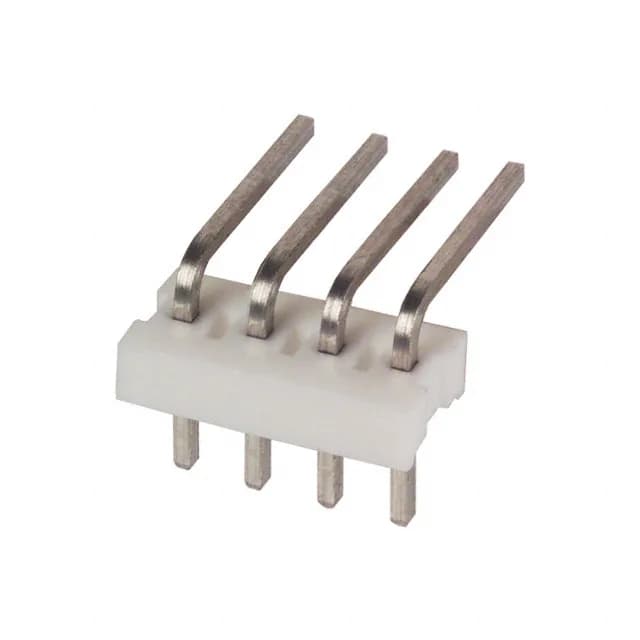

TE Connectivity AMP Connectors MTA-100, Header, 4 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Unshrouded, Tin Mating Finish
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
The 640453-4: The mating pin length is 0.295" (7.49mm), which engages fully with the receptacle contact beam. All 4 positions are loaded; the square male pins are copper alloy with tin finish.
The 640453-4 is unshrouded, 4 positions, and uses the wider 0.100" pitch; the choice depends on whether the application needs polarised shrouding and a locking latch for vibration resistance.
The 1-292164-1 from the CT series is a right-angle through-hole header with a shrouded 4-wall design and detent lock, but it has 11 positions on a 0.079" pitch. The 640453-4 is unshrouded with 4 positions on a 0.100" pitch — the best alternative depends on whether you need shrouding and a locking latch.
