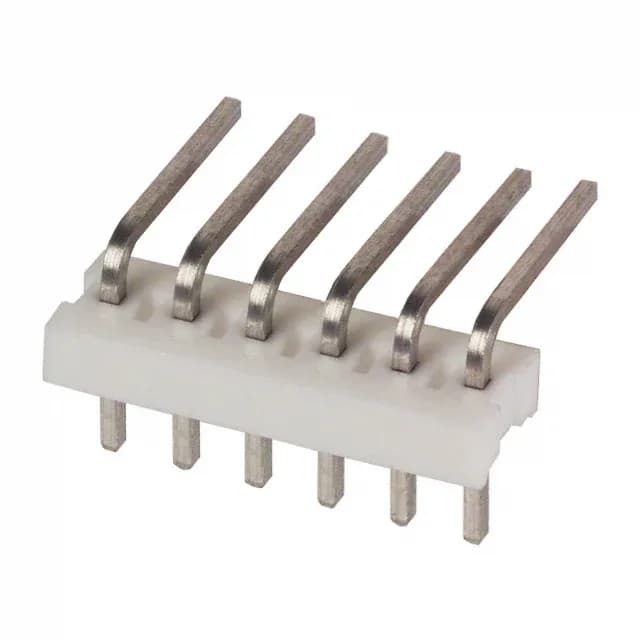

Board-edge header for MTA-100 harnesses
The 6-position version uses all positions loaded — no skipped pins to account for during layout. The mating pin length is 0.295" (7.49 mm), which engages the full contact beam of the MTA-100 receptacle. The post length of 0.140" (3.56 mm) is enough to clear a standard 1.6 mm PCB and still leave solder fillet visible for inspection.
Current rating and operating range
The voltage rating is 250 VAC, which is typical for signal-level and low-power distribution inside control cabinets and consumer electronics.
