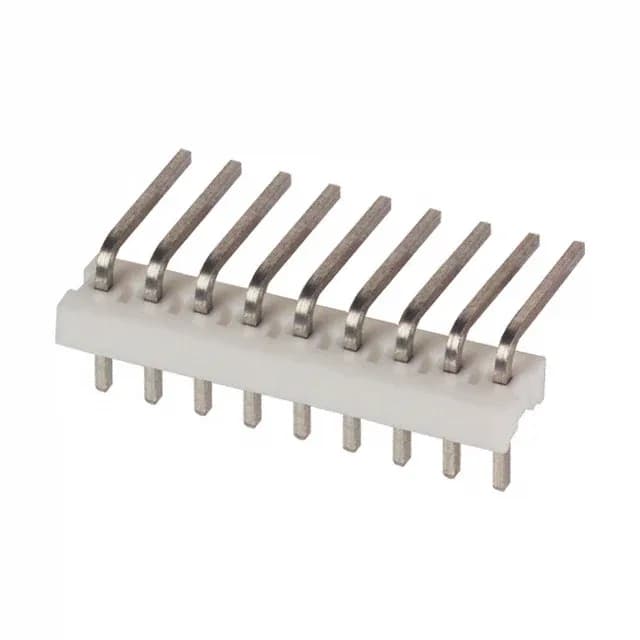

TE Connectivity AMP MTA-100 series, 640453-9, unshrouded single-row header, 9 positions, 0.100" (2.54 mm) pitch, right-angle through-hole solder termination, tin-plated male square pins, natural thermoplastic housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
The 640453-9: It mates with MTA-100 IDC receptacles and crimp-style connectors for board-to-wire applications.
Through-hole right-angle mounting with solder termination.
No official replacement or successor has been issued. The base product number 640453 covers multiple position counts and plating options in the MTA-100 header family.
640453-9 is sourced through independent distribution against an RFQ. Submit your BOM quantity for a current price and lead-time confirmation — no stock-holding claim is made on this listing.
This header mates with MTA-100 series IDC receptacles and crimp-style housings. The 9-position, 0.100" pitch single-row receptacle is the direct mating half.
