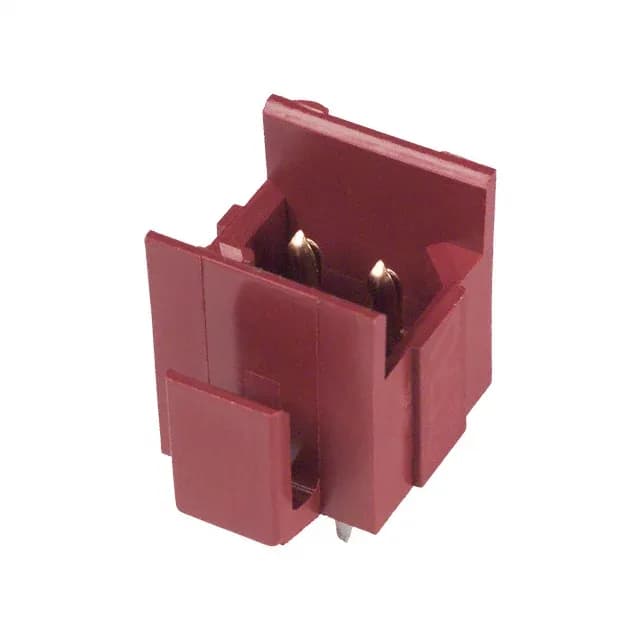

TE Connectivity AMP Connectors MR (Miniature Rectangular) series, 640499-4, board-to-cable/wire header, 4 circuits, 2 rows, 4.20 mm pitch, 6 A, gold mating finish, latch lock, through-hole solder, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | MR (Miniature Rectangular) |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 250VAC |
| Current rating | 6A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black, Red |
| Insulation height | 0.531\" (13.50mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 4 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.210\" (5.33mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.220\" (5.59mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 4.20 mm pitch sets the PCB footprint and the per-contact current ceiling — at 6 A the temperature rise stays within the UL94 V-0 polyamide housing limits. The post finish is tin-lead (150.0 µin), which mates with standard solder processes but makes the part RoHS non-compliant.
Confirm the receptacle order code against the BOM before committing.
The 640499-4 mates with TE MR series receptacle housings that accept crimp terminals at 4.20 mm pitch.
No. The post finish is tin-lead (150.0 µin), making the part RoHS non-compliant. For RoHS-required builds, evaluate the peer MPNs (1318699-3, 1-1871673-2, 4-1775099-7) for lead-free alternatives.
