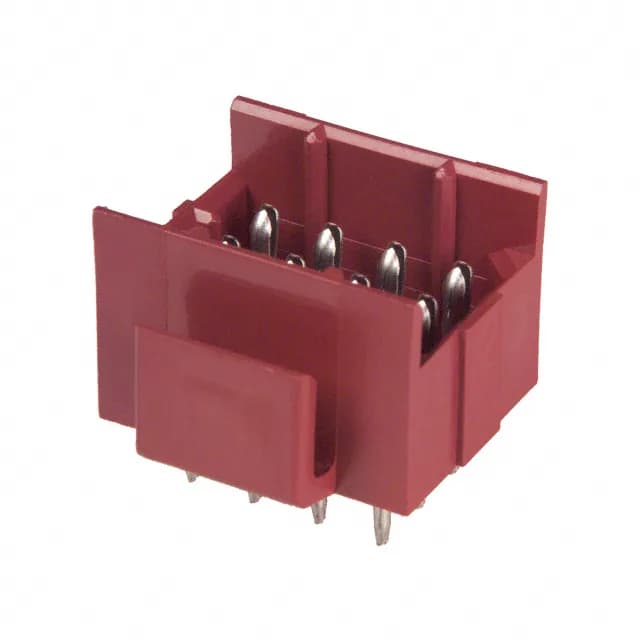

Molex MR Header 640502-3, 12-Position, 4.20 mm Pitch, 6 A
Molex 640502-3, MR (Miniature Rectangular) series, 3-row 12-position shrouded pin header, 0.165" (4.20 mm) row pitch, male circular contacts, through-hole solder termination, tin-plated on both mating and post surfaces, rated 6 A per circuit at 250 VAC, latch-lock fastening, -55 °C to 105 °C operating range, UL94 V-0 polyamide insulation, bulk package.
Specifications
| Parameter | Value |
|---|---|
| Series | MR (Miniature Rectangular) |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 250VAC |
| Current rating | 6A |
| Operating temperature | -55°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black, Red |
| Insulation height | 0.531\" (13.50mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 12 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.210\" (5.33mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.220\" (5.59mm) |
Frequently asked questions
What is the 640502-3's connector series?
The 640502-3 is a member of the Molex MR (Miniature Rectangular) series — a D-sub geometry header family at 0.165" (4.20 mm) row pitch.
What is the 640502-3's listed style?
The listed style is Board to Cable/Wire — meaning this header is intended for the board-side termination of a wire-to-board or cable-to-board harness junction.
What does the 640502-3 mate with?
It mates with the matching MR-series shrouded receptacle housing that accepts the 4-wall shroud and latch-lock profile. The connector is a 12-position 3-row male pin header — the mating half must carry the corresponding 12-way female contact array and latch tab.
