24-Position 4.20mm Pitch Vertical Header
The 640505-1: Typical applications include general-purpose industrial equipment, control panels, and power distribution where a reliable board-to-cable interconnect is needed.
640505-1 TE Connectivity AMP Connectors 24-Position 4.20mm
MPN640505-1
Active
TE Connectivity AMP Connectors MR (Miniature Rectangular) series, 640505-1, 24-position, 4-row, 4.20mm pitch vertical male header, board-to-cable style, latch lock, through-hole solder termination, tin-plated phosphor bronze contacts rated 6A per circuit at 250VAC, UL94 V-0 polyamide insulator, -55°C to 105°C operating range.
$12.1200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMR (Miniature Rectangular)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MR (Miniature Rectangular) |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 250VAC |
| Current rating | 6A |
| Operating temperature | -55°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black, Red |
| Insulation height | 0.531\" (13.50mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 4 |

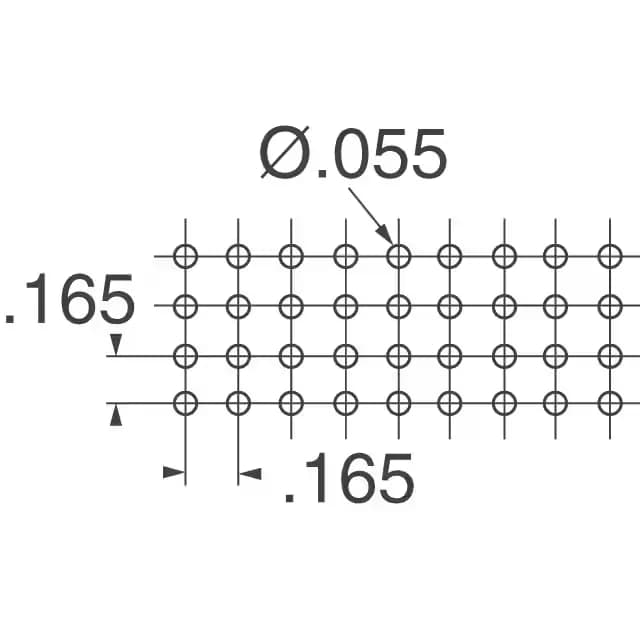

| Pitch | 0.165\" (4.20mm) |
| Positions | 24 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.220\" (5.59mm) |
Product details
Frequently asked questions
Is the 640505-1 RoHS compliant?
Yes, the 640505-1 is RoHS compliant, suitable for lead-free assembly processes.
What is the mating connector for the 640505-1?
This is a male header designed for board-to-cable/wire applications. It mates with a corresponding MR series female receptacle housing and crimp terminals (not included). Confirm the mating half part number based on your wire gauge and circuit count.
What is the replacement or equivalent for the 640505-1?
No direct replacement is listed by the manufacturer. The peer 1318699-3 is a 12-position, gold-plated alternative with the same pitch and latch lock, but half the circuit count. For a 24-position equivalent, verify compatibility with other MR series headers.
