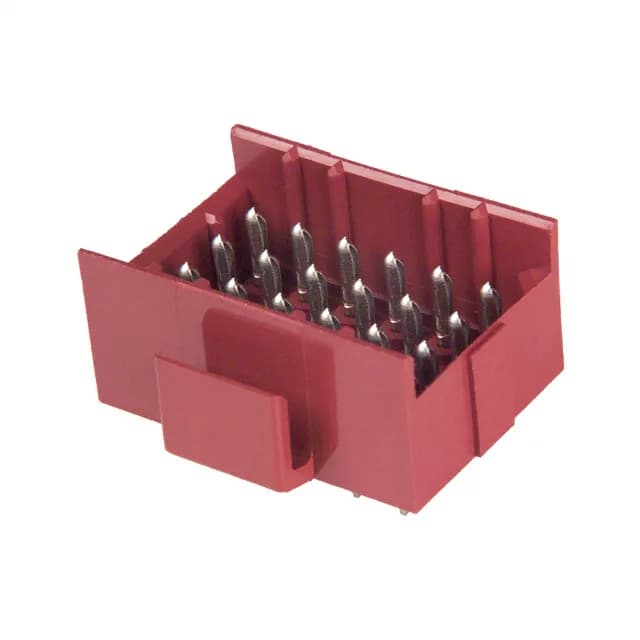

TE Connectivity MR (Miniature Rectangular) series, 640505-3, 24-position, 4-row, shrouded header, 4.20 mm pitch, 6 A per circuit, tin-plated phosphor bronze contacts, through-hole solder, latch lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | MR (Miniature Rectangular) |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 250VAC |
| Current rating | 6A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black, Red |
| Insulation height | 0.531\" (13.50mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 4 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 24 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.210\" (5.33mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.220\" (5.59mm) |
The 0.165 inch (4.20 mm) pitch and row spacing demand a board footprint that fits a 4-row pattern with a 13.50 mm insulation height. The 0.220 inch (5.59 mm) mating contact length and 0.210 inch (5.33 mm) post length set the through-hole depth.
The 640505-3 is rated 6 A per circuit at 250 VAC. The tin-plated contacts are suited for moderate current in signal or power distribution applications.
