TE Connectivity AMP Connectors 640584-3 — Pin Headers

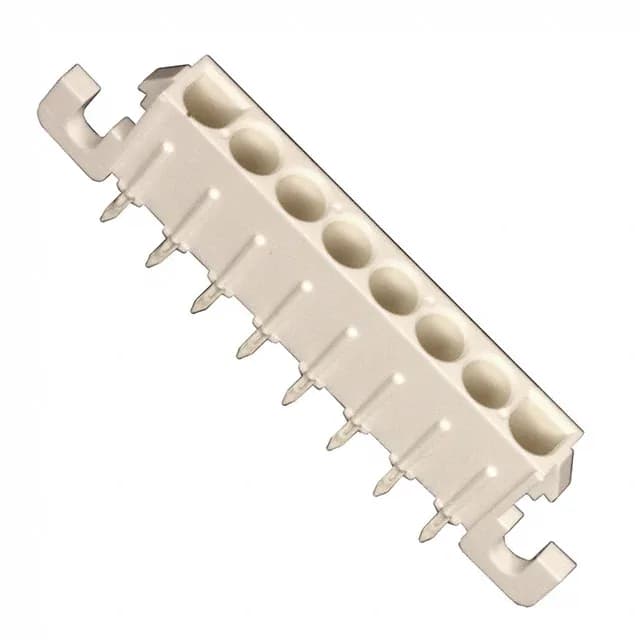

640584-3 TE Universal MATE-N-LOK Header 8 Pos 6.35mm RA

MPN640584-3
Active

TE Connectivity AMP Connectors Universal MATE-N-LOK header, 640584-3, 8 positions single-row, 0.250 inch (6.35 mm) pitch, right-angle through-hole, solder termination, gold-plated mating contacts rated 12 A per circuit at 600 VAC, tin solder-tail finish, mounting flange with locking ramp, UL94 V-0 nylon housing, -40 to 105 °C.

$8.4900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesUniversal MATE-N-LOK
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

640584-3 key specifications
ParameterValue
SeriesUniversal MATE-N-LOK
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC
Current rating12A
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorWhite
Insulation height0.360\" (9.14mm)
Insulation materialPolyamide (PA), Nylon

All specifications

640584-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesMounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeCircular
Rows1
Pitch0.250\" (6.35mm)
Positions8
Contact finish - postTin
Contact length - post0.160\" (4.06mm)
Contact finish - matingGold
Contact finish thickness - mating30.0µin (0.76µm)

Product details

8 positions at 0.250-inch pitch — the board footprint decision

The 640584-3: This is an 8-position, single-row header on a 0.250-inch (6.35 mm) pitch — the spacing sets the minimum PCB real estate for the solder pads and the clearance between adjacent traces. The locking ramp fastening type audibly clicks when mated with a standard Universal MATE-N-LOK receptacle, providing vibration-resistant retention — useful in equipment that sees transport or fan vibration.

12 A per circuit with 30 µinch gold — power and cycle life

Each contact is rated 12 A at 600 VAC — the current ceiling is set by the contact cross-section and the UL94 V-0 nylon housing's thermal limits.

Mates with Universal MATE-N-LOK receptacle housings

Confirm the receptacle's circuit count and keying match the header's single-row, 8-position layout before committing to the BOM.

Frequently asked questions

What is the pitch and position count of 640584-3?

640584-3 is an 8-position, single-row header with a 0.250-inch (6.35 mm) pitch. All positions are loaded.

Does 640584-3 mate with a standard Universal MATE-N-LOK receptacle?

Yes, it mates with the matching Universal MATE-N-LOK receptacle housing and crimp terminals. The locking ramp on the header engages the receptacle latch for vibration-resistant retention.
