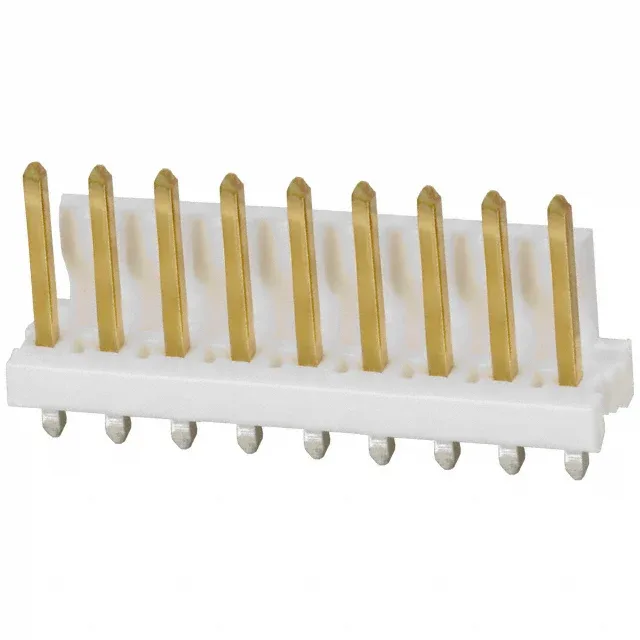

TE Connectivity MTA-156 header, order code 641208-9, 9 positions, single row, 0.156" (3.96mm) pitch, 600VAC, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.425\" (10.80mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 9 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.650\" (16.51mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.400\" (10.16mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 641208-9 is the 9-circuit member of TE's MTA-156 shrouded header line, designed for board-to-cable/wire applications. It carries gold-plated mating contacts rated 600VAC and mounts through-hole with solder termination, using a friction lock for retention.
The 641208-9 is marked Obsolete by the manufacturer. Quantities are confirmed at RFQ against the BOM line.
The 641208-9 is a 9-position, single-row header with a 0.156" (3.96mm) mating pitch.
