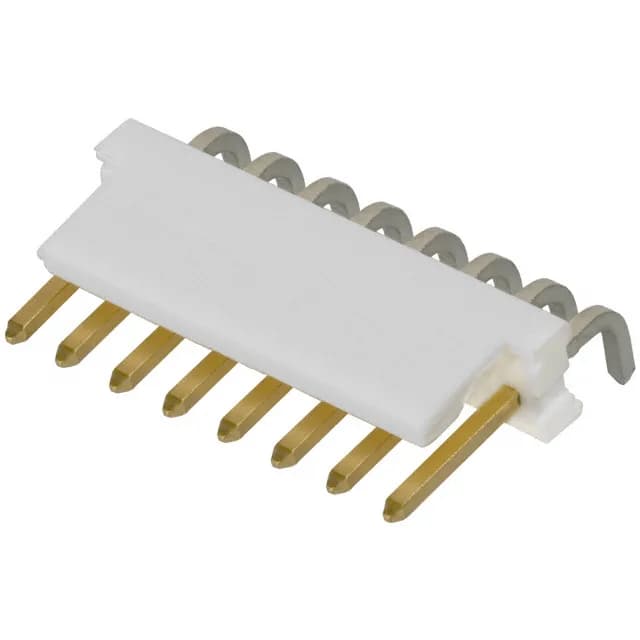

TE Connectivity AMP Connectors MTA-156 header, order code 641210-8, 8 positions, single row, 0.156" (3.96mm) pitch, 600VAC, gold-plated mating contacts, through-hole right-angle, solder termination, friction lock.
TE 641210-8 MTA-156 Header, 8 Pos, 3.96mm, Right Angle
MPN641210-8
Active
TE Connectivity AMP Connectors MTA-156 header, order code 641210-8, 8 positions, single row, 0.156" (3.96mm) pitch, 600VAC, gold-plated mating contacts, through-hole right-angle, solder termination, friction lock.
$4.1900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.300\" (7.62mm) |
| Insulation material | Thermoplastic, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 8 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.400\" (10.16mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation does TE provide for 641210-8?
The header is rated UL94 V-0 for flammability. RoHS and REACH compliance documentation is available from TE Connectivity upon request.
