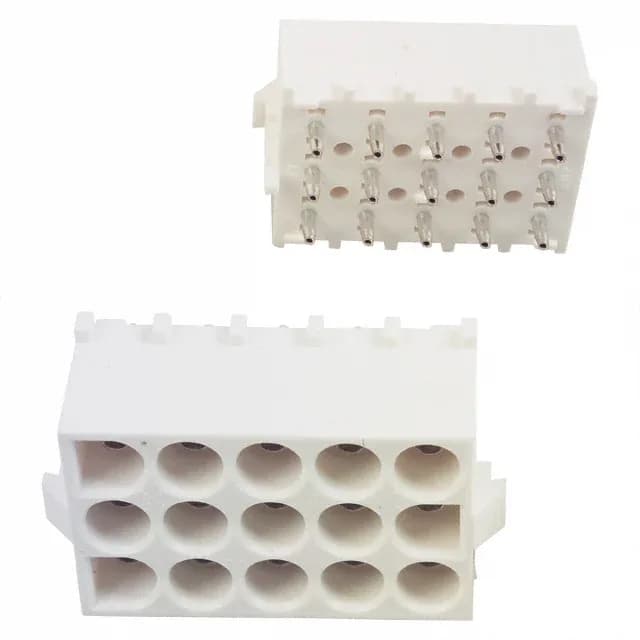

TE Connectivity AMP Connectors Universal MATE-N-LOK header, order code 641976-2, 15 positions, triple row, 0.250" (6.35mm) pitch, 600VAC at 12A, gold-plated mating contacts (30.0µin), through-hole solder termination, shrouded - 4 wall, locking ramp.
| Parameter | Value |
|---|---|
| Series | Universal MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Current rating | 12A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | White |
| Insulation height | 0.550\" (13.97mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.250\" (6.35mm) |
| Positions | 15 |
| Row spacing - mating | 0.250\" (6.35mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.155\" (3.94mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 641976-2 is the 15-circuit member of TE's Universal MATE-N-LOK header line, a shrouded triple-row board-to-cable/wire header on a 0.250" pitch. Rated 12A per circuit at 600VAC with gold-plated mating contacts (30.0µin) over phosphor bronze, the header suits power distribution inside equipment enclosures where the UL94 V-0 polyamide housing and locking ramp hold the mated pair under vibration.
The 641976-2 is listed as a Universal MATE-N-LOK series connector in the Board to Cable/Wire style, which means it is a shrouded multi-row male header designed to mate with the matching MATE-N-LOK plug housing in harness-to-board power applications.
The mating face carries gold plating at 30.0 µin (0.76 µm) while the solder tails are tin-lead — the gold mating finish, combined with the shrouding and locking ramp, gives this header reasonable reconnection cycle durability for industrial environments where a harness plug is mated and unmated during service.
The 641976-2 is rated 600VAC and 12 A per circuit — placing it in the mid-range power tier of the Universal MATE-N-LOK family, suitable for moderate power distribution rather than high-current bus applications.
The housing is rated UL94 V-0, meeting the standard flammability requirement for industrial and appliance panel connectors — a material qualification often specified in those environments.
