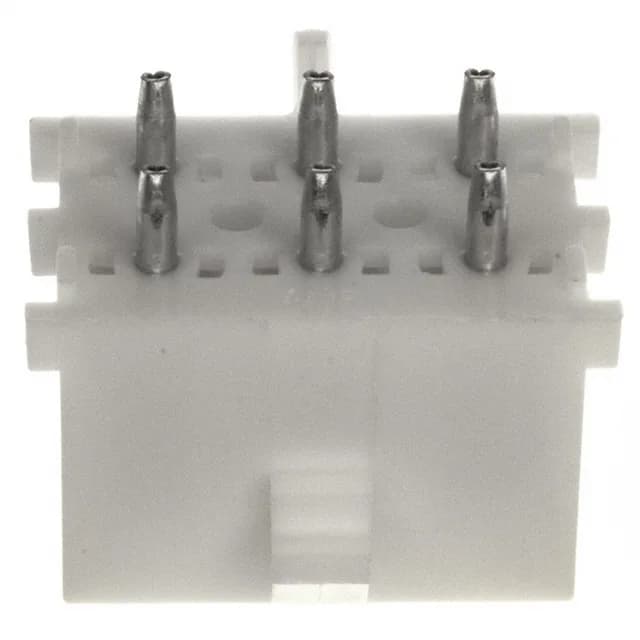

TE Connectivity AMP Connectors Universal MATE-N-LOK header, 6 positions, 3 rows, 0.250" (6.35mm) pitch, through hole, gold-plated female socket contacts, locking ramp, UL94 V-0, -40°C to 105°C
| Parameter | Value |
|---|---|
| Series | Universal MATE-N-LOK |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.580\" (14.73mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.250\" (6.35mm) |
| Positions | 6 |
| Row spacing - mating | 0.250\" (6.35mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.155\" (3.94mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The locking ramp fastening type keeps the mating connector locked in place, and the 0.250" (6.35mm) pitch provides ample spacing for routing higher-current or larger-gauge wires.
Mounting is through hole with solder termination, and the contacts are female socket type with a circular shape. The post finish is tin, compatible with standard soldering processes.
The pitch is 0.250" (6.35mm) on both the mating and row spacing, with 3 rows and 6 positions total.
Yes, 643424-3 is RoHS3 compliant.
