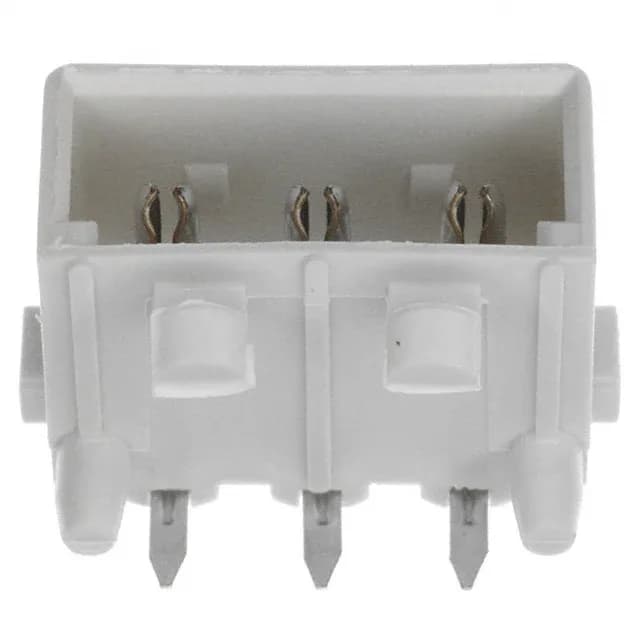

TE Connectivity AMP Connectors 643488-1, Commercial MATE-N-LOK series, 3-position single-row right-angle header, 0.200 inch (5.08 mm) pitch, 12 A per circuit at 250 VAC, tin-plated phosphor bronze contacts, friction lock, through-hole solder termination, UL94 V-0 polyamide housing.
| Parameter | Value |
|---|---|
| Series | Commercial MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 12A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.345\" (8.76mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide, Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Contact finish - mating | Tin |
The 643488-1: This is a 3-position, single-row right-angle header from the Commercial MATE-N-LOK series, with a 0.200 inch (5.08 mm) pitch that sets the PCB footprint and the per-contact current ceiling.
Yes, the 643488-1 is RoHS compliant per the manufacturer's listing.
It is a 3-position, single-row right-angle header with through-hole solder termination. The pins are loaded in all positions, and the friction lock ensures correct orientation during mating.
