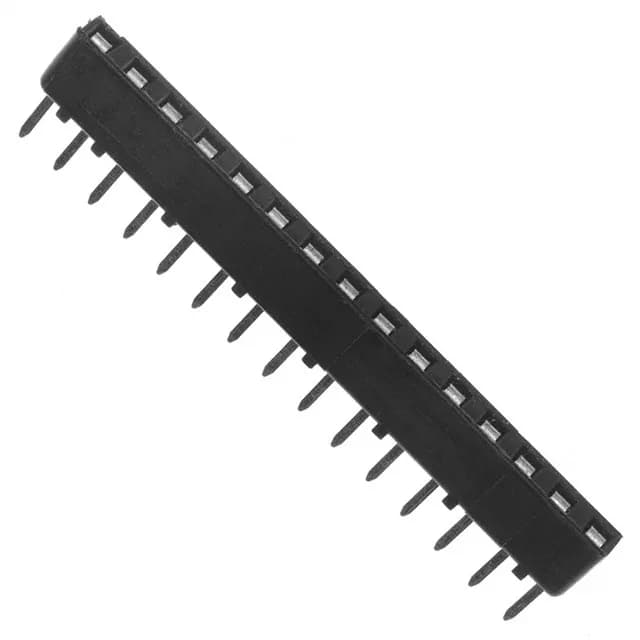

TE Connectivity AMP Connectors Diplomate DL SIP header, order code 643647-1, 15 positions, single row, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Type | SIP |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Thermoplastic, Glass Filled |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.130\" (3.30mm) |
| Number of positions or pins | 15 (1 x 15) |
The 643647-1 is the 15-position member of TE Connectivity's Diplomate DL SIP header line — single row, 0.100" (2.54mm) pitch, through-hole solder termination.
The 643647-1 is listed as Obsolete by TE Connectivity AMP Connectors. A board spin is required for any functional replacement.
The 643647-1 is available through independent surplus channels. Submit an RFQ for current availability and pricing.
