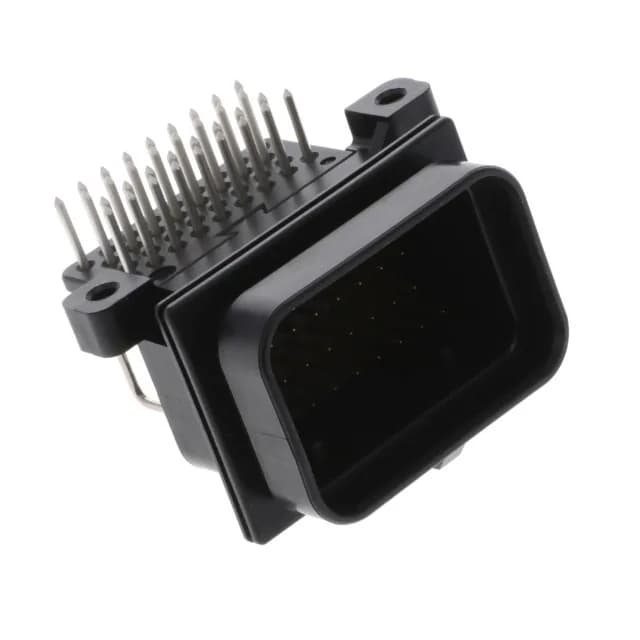

34-position Superseal header for automotive harnesses
Sealed, locked, and ready for vibration
This header is sealed and includes a mounting flange, making it suitable for areas exposed to splash or dust — typical underhood or body-adjacent locations in a vehicle.
Gold mating finish for corrosive underhood duty
The brass contact material provides good conductivity at a cost suitable for high-volume automotive production.
Active production and RoHS compliance
The part ships in tube packaging for manual or automated handling.
A common cross-shop is the 1318699-3, also a 4-row shrouded header with locking latch and gold mating finish. The key difference: the 1318699-3 uses a 4.20mm pitch and carries 12 positions, while the 6437288-2 packs 34 positions on a tighter 3.00mm pitch. If your board has the room for a larger pitch and fewer circuits, the 1318699-3 is an alternative; for higher density in the same row count, the 6437288-2 is the fit.
