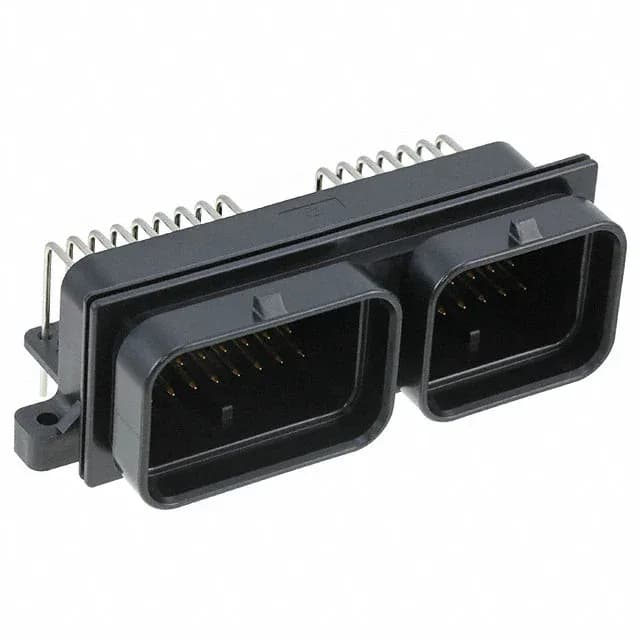

TE Connectivity Superseal, 6437288-3, 60-position, 4-row, 3.00 mm pitch, right-angle through-hole, shrouded - 4 wall, sealed header with locking ramp, gold mating contacts, -40°C to 125°C.
| Parameter | Value |
|---|---|
| Series | Superseal |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Brass |
| Insulation height | 1.079\" (27.40mm) |
| Insulation material | Polyester |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Mounting Flange, Sealed |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Circular |
| Rows | 4 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 60 |
| Contact finish - post | Tin |
| Contact length - post | 0.157\" (4.00mm) |
| Contact finish - mating | Gold |
6437288-3 is a 60-position, 4-row, 3.00 mm pitch right-angle through-hole header from the TE Connectivity Superseal series, designed for board-to-cable/wire applications where a sealed, vibration-resistant connection is required. The shrouded - 4 wall design and locking ramp fastening provide positive mate retention, while the integrated mounting flange and sealed construction make it suitable for automotive underhood and outdoor environments.
Yes, 6437288-3 is a sealed header with a mounting flange. The mating pitch is 3.00 mm (0.118 inches), 4 rows, 60 positions total.
Through-hole, right-angle mounting. The contact length after the post is 0.157 inches (4.00 mm).
