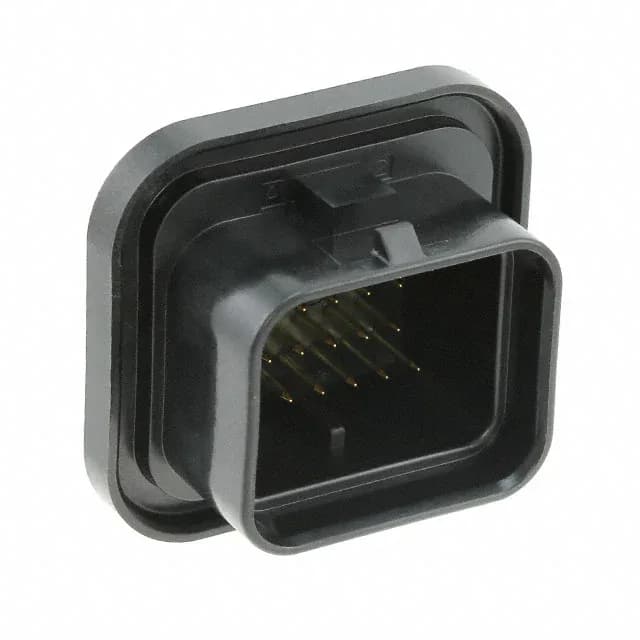

TE Connectivity AMP Superseal, 6437288-6, Board to Cable/Wire header, 26 circuits, 4 rows, 3.00 mm pitch, shrouded 4-wall, locking ramp, through-hole solder, sealed, -40°C to 125°C
| Parameter | Value |
|---|---|
| Series | Superseal |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Brass |
| Insulation height | 0.972\" (24.70mm) |
| Insulation material | Polyester |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Sealed |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Circular |
| Rows | 4 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 26 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
At 3.00 mm pitch and 26 positions across 4 rows, the 6437288-6 occupies a wider PCB footprint than a typical 2-row header. Confirm the board layout accommodates the 24.70 mm insulation height and the 4-row through-hole pattern.
The 6437288-6 mates with a Superseal cable-side receptacle housing that accepts the same 3.00 mm pitch and 4-row layout. The locking ramp on the header engages with the plug's latch for vibration-proof retention. Confirm the mating half part number from the Superseal series documentation.
