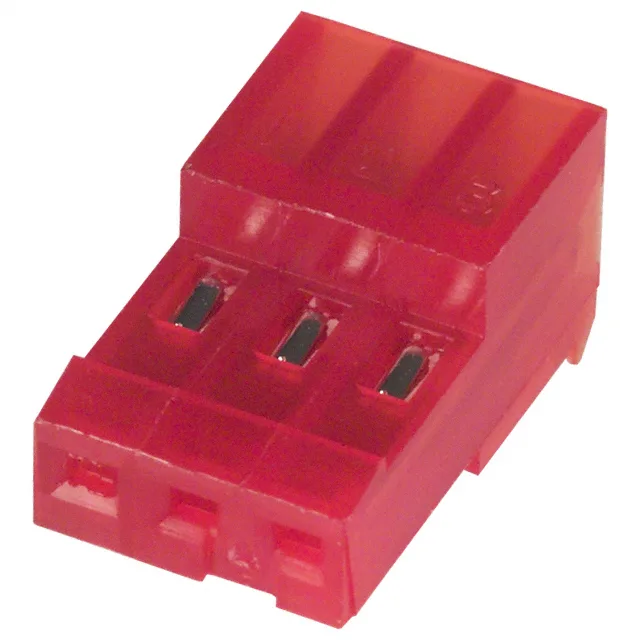

643813-3 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-100 643813-3, 3-Position IDC Receptacle, 0.100" Pitch

MPN643813-3
Obsolete

TE MTA-100 IDC receptacle, 643813-3, 3 positions, 1 row, 0.100" (2.54mm) pitch, free-hanging right-angle, tin-lead 80.0µin contacts, 22 AWG, locking ramp, closed end, red.

$0.2800Ref. price · indicative, final on quote
643813-3 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

643813-3 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishTin-Lead
Rows1
Positions3
Contact finish thickness80.0µin (2.03µm)

Product details

3-Position IDC Receptacle for Discrete or Ribbon Cable

The TE MTA-100 643813-3 is a 3-position IDC receptacle designed for terminating discrete or ribbon cable in a single pass. The closed-end design prevents stubbing during cable insertion, and the red housing aids visual identification in a multi-wire harness. Wire gauge is specified for 22 AWG discrete or ribbon cable.

No official TE replacement order code is listed for this part.

The 0.100" pitch and 3-position single-row layout match a standard through-hole or vertical header. The IDC termination is designed for 22 AWG wire.

Frequently asked questions

What is the replacement for TE 643813-3?

For a direct drop-in, the surplus channel is the only sourcing option. If the BOM can tolerate a different series, a TE applications engineer would need to recommend a current-production alternative.

Does 643813-3 work with 22 AWG wire?

Yes, the 643813-3 is specified for 22 AWG discrete or ribbon cable. The IDC slot geometry is designed for that wire gauge; using a different size will not produce a reliable termination.
