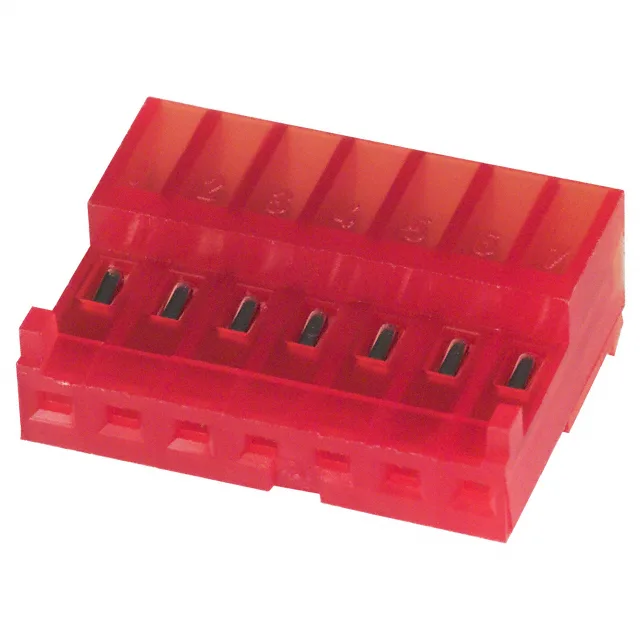

643813-7 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 643813-7 MTA-100 Receptacle, 7 Pos

MPN643813-7
Active

TE Connectivity MTA-100 IDC receptacle, 7 positions, 0.100" (2.54mm) pitch, 1 row, tin-lead contacts, free-hanging right-angle, locking ramp, 22 AWG, red, bulk.

$0.3900Ref. price · indicative, final on quote
643813-7 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

643813-7 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishTin-Lead
Rows1
Positions7
Contact finish thickness80.0µin (2.03µm)

Product details

What This 7-Position MTA-100 IDC Receptacle Is

It is a free-hanging, right-angle connector with a closed end, designed for 22 AWG wire.

No stripping or crimping is needed, just a hand or pneumatic IDC tool.

Contact Finish and Duty

If the assembly sees repeated field service, a gold-plated variant from the same MTA-100 family would be a better fit for cycle life.

Frequently asked questions

What wire gauge does 643813-7 accept?

It accepts 22 AWG discrete or ribbon cable, terminated via IDC.
