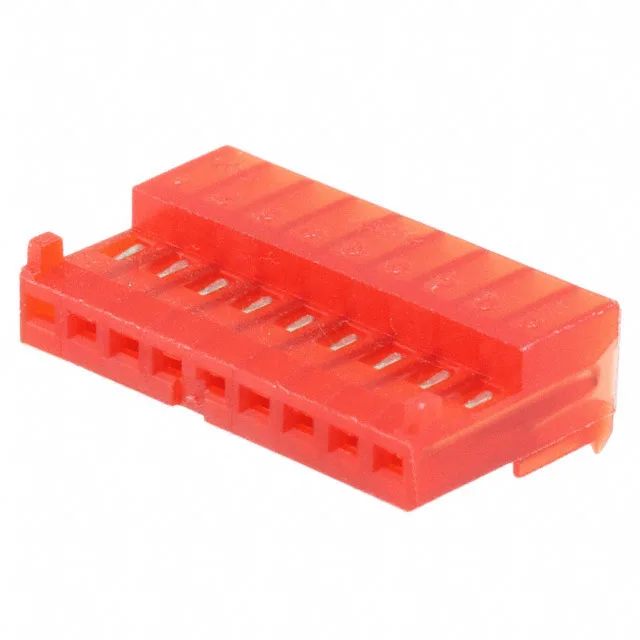

TE Connectivity MTA-100 IDC receptacle, 9 positions, 0.100" (2.54mm) pitch, 1 row, tin-lead plating, free-hanging right-angle, locking ramp, closed end, 22 AWG, bulk.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Wire type | Discrete or Ribbon Cable |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line), Right Angle |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Wire gauge | 22 AWG |
| Cable termination | IDC |
| Color | Red |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Closed End |
| Contact finish | Tin-Lead |
| Rows | 1 |
| Positions | 9 |
| Contact finish thickness | 80.0µin (2.03µm) |
IDC termination accepts 22 AWG wire, either discrete or ribbon cable. The closed end of the housing acts as a wire stop, ensuring consistent insertion depth during mass termination.
Active lifecycle status. No official cross-reference or replacement from TE Connectivity.
No. The 643813-9 uses tin-lead contact plating (80.0µin), which is not RoHS compliant.
The 643813-9 accepts 22 AWG wire, either discrete or ribbon cable, terminated via IDC.
Yes. The MTA-100 IDC receptacle is designed for both discrete and ribbon cable.
