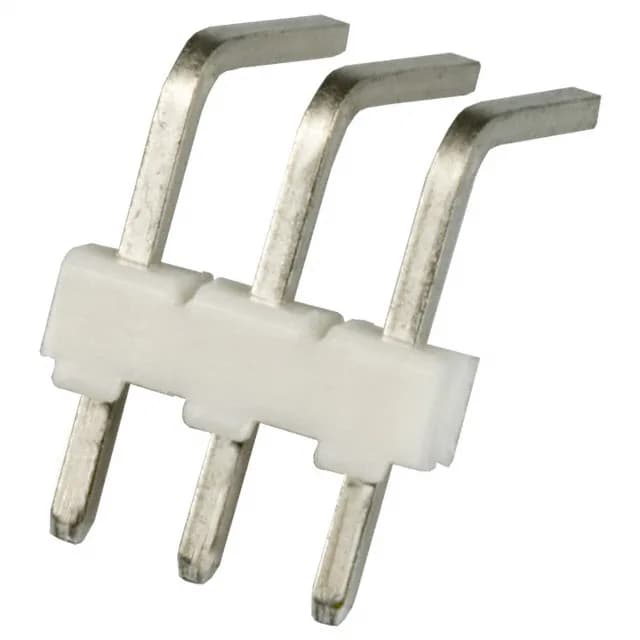

TE Connectivity AMP Connectors MTA-100 series, 3-position unshrouded header, 0.100" (2.54 mm) pitch, right-angle through-hole, tin-lead male pins, UL94 V-0 natural thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
In a low-vibration, benchtop or consumer-grade assembly this is fine, but for equipment subject to shock or cable tug, a shrouded header or a secondary locking mechanism on the receptacle side is worth considering.
For a BOM line that still calls out this exact order code, the only channel is independent distribution. No stock-holding claim — each lot is verified before commitment.
The pitch is 0.100" (2.54 mm), standard for the MTA-100 series and compatible with the matching receptacle housing.
