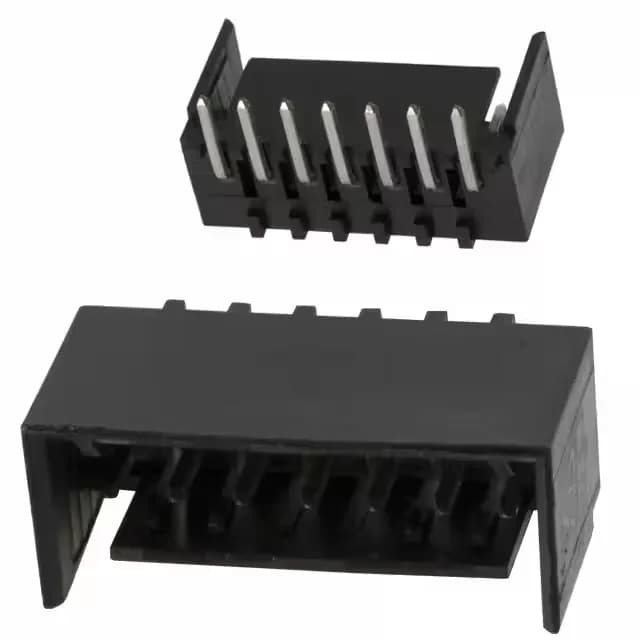

TE Connectivity MTA-100 series, 644488-7, shrouded header, 7 circuits, 0.100" (2.54 mm) pitch, right-angle through-hole, friction lock, tin-lead plating, UL94 V-0 polyester housing.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.343\" (8.71mm) |
| Insulation material | Polyester |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.200\" (5.08mm) |
No stock-holding claim; sourced per BOM quantity.
The 0.100" pitch and single-row layout are standard across the MTA-100 family — the mating half must be a 7-position, single-row receptacle with a friction-lock ramp.
No official pin-compatible replacement is recorded from TE Connectivity. The MTA-100 series includes active headers with similar pitch and position count, but a board spin may be required to match the footprint and locking feature. Confirm the BOM position count and mating half before committing.
A shrouded header (like 644488-7) has a four-wall plastic enclosure around the pins that protects the contacts during mating and provides keying to prevent mis-mating.
