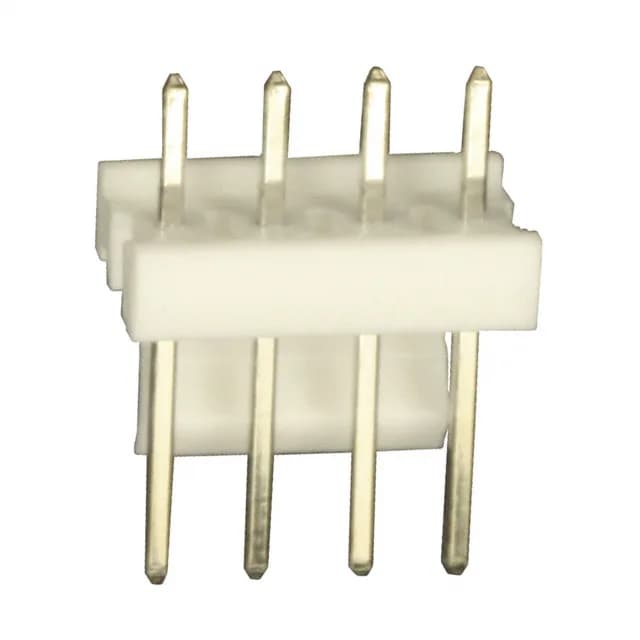

TE Connectivity AMP Connectors MTA-100 header, 4 positions, 0.100" (2.54mm) pitch, single-row, shrouded 1 wall, friction lock, through-hole solder termination, UL94 V-0, natural insulation.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.305\" (7.75mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.535\" (13.59mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.295\" (7.49mm) |
The 644518-4: The shrouded 1-wall design provides basic polarization to prevent mis-mating. A friction lock on the header body secures the mating receptacle, offering retention in applications with moderate vibration.
This header mates with MTA-100 crimp receptacles (e.g., 640441 series) using the friction lock for retention.
