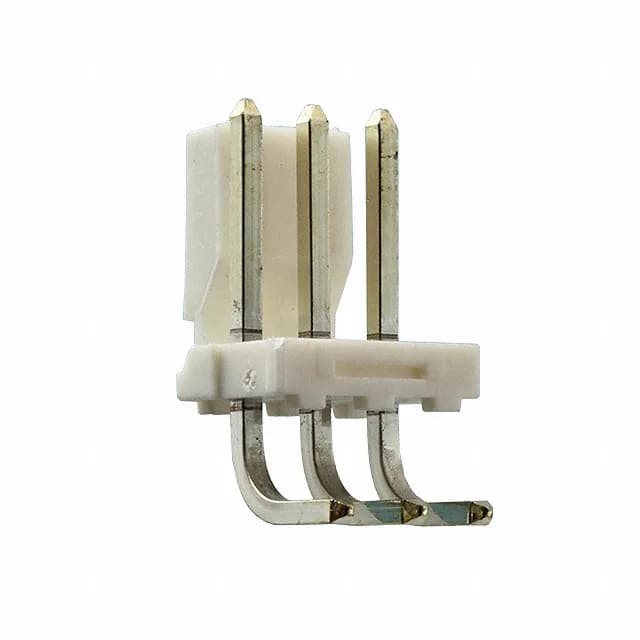

TE Connectivity AMP Connectors MTA-156 header, order code 644613-3, 3 positions, single row, 0.156" (3.96mm) pitch, 600VAC, tin-lead plated mating contacts, through-hole right-angle, solder termination.
TE 644613-3 MTA-156 Header, 3 Pos, 0.156" Pitch, Obsolete
MPN644613-3
Obsolete
TE Connectivity AMP Connectors MTA-156 header, order code 644613-3, 3 positions, single row, 0.156" (3.96mm) pitch, 600VAC, tin-lead plated mating contacts, through-hole right-angle, solder termination.
$1.8500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.300\" (7.62mm) |
| Insulation material | Thermoplastic, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 3 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
Product details
Frequently asked questions
Where can I buy the 644613-3 and how do I get a price?
The 644613-3 is available through independent surplus distributors. Submit an RFQ with quantity and target lead time; pricing is lot-specific and confirmed per inquiry.
What is the closest pin-compatible alternative to the 644613-3 in the MTA-156 family?
No pin-compatible successor is recorded from TE Connectivity AMP Connectors. Any functional replacement would require a different part number and likely a board layout change — verify the mating half and footprint before substitution.
