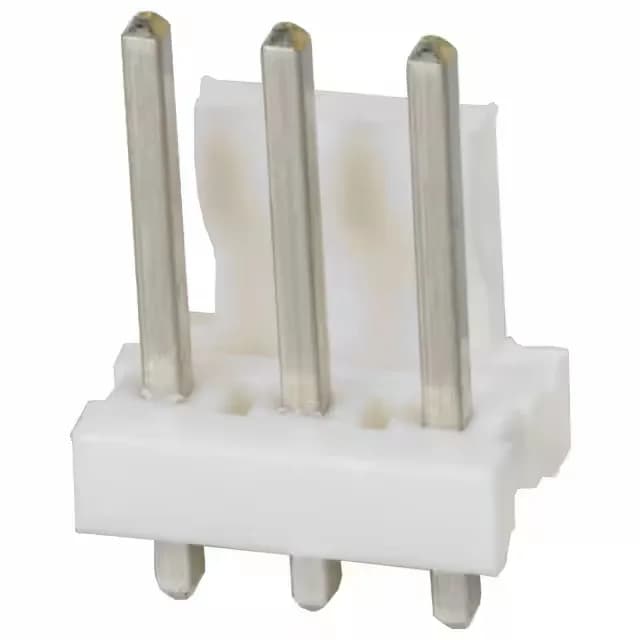

TE Connectivity AMP Connectors MTA-156 series header, 644752-3, 3 positions, 0.156" (3.96mm) pitch, shrouded 1-wall, friction lock, through-hole solder termination, tin-plated male pins, UL94 V-0, -55°C to 105°C.
644752-3 TE Connectivity MTA-156 Header 3 Pos 3.96mm Pitch
MPN644752-3
Active
TE Connectivity AMP Connectors MTA-156 series header, 644752-3, 3 positions, 0.156" (3.96mm) pitch, shrouded 1-wall, friction lock, through-hole solder termination, tin-plated male pins, UL94 V-0, -55°C to 105°C.
$0.4200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMTA-156
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.425\" (10.80mm) |
| Insulation material | Thermoplastic, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.175\" (4.45mm) |
| Overall contact length | 0.700\" (17.78mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
Product details
Frequently asked questions
What series does the 644752-3 belong to?
It is part of the MTA-156 series from TE Connectivity AMP Connectors, a family of wire-to-board interconnect products with a 0.156" pitch.
