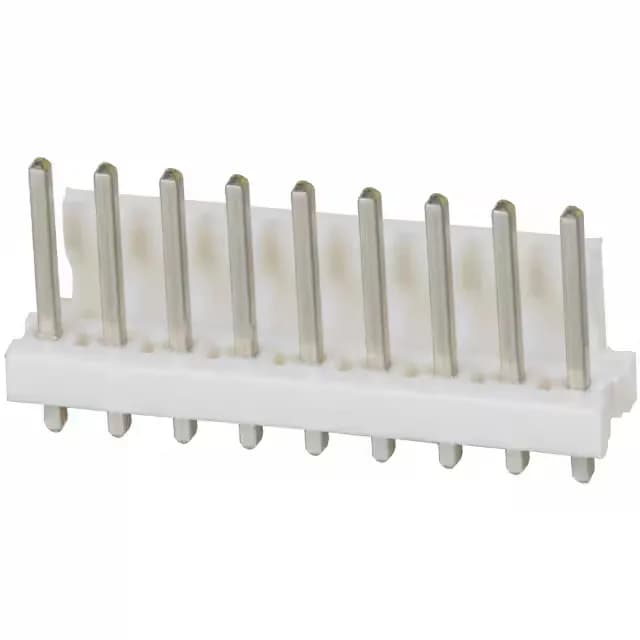

TE Connectivity 644752-9 MTA-156 Header, 9 Pos, 3.96mm Pitch

MPN644752-9
Active

TE Connectivity AMP Connectors MTA-156 header, 9 positions, 3.96mm pitch, through-hole, shrouded 1 wall, friction lock, tin-plated contacts, UL94 V-0, natural insulation.

$0.8800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 644752-9 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMTA-156
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

644752-9 key specifications
ParameterValue
SeriesMTA-156
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating600VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.425\" (10.80mm)
Insulation materialThermoplastic, Glass Filled

All specifications

644752-9 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions9
Contact finish - postTin
Contact length - post0.175\" (4.45mm)
Overall contact length0.700\" (17.78mm)
Contact finish - matingTin
Contact length - mating0.400\" (10.16mm)

Product details

Board Layout Fit for the 9-Position Header

The 0.400-inch (10.16mm) mating pin length engages the receptacle contact fully, and the 0.175-inch (4.45mm) solder tail gives enough through-hole length for a solid fillet on a standard 1.6mm PCB.

This header mates with MTA-156 receptacle housings that accept the corresponding crimp socket terminals. The 1-wall shroud guides the receptacle into alignment, and the friction lock engages the ramp on the receptacle housing. The 600VAC voltage rating covers most panel and industrial control circuits.

Frequently asked questions

Is 644752-9 RoHS compliant?

Yes, 644752-9 is ROHS3 compliant.

What mating connector works with 644752-9?

This header mates with MTA-156 receptacle housings that accept the corresponding crimp socket terminals. The friction lock engages the ramp on the receptacle housing.

What is the pitch of 644752-9?

The pitch is 0.156 inches (3.96mm), which is the standard for the MTA-156 series.
