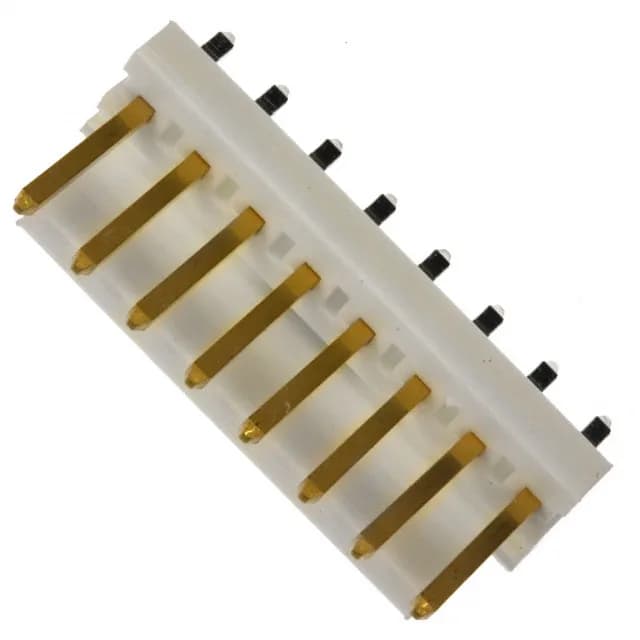

TE Connectivity AMP Connectors MTA-156 header, order code 644766-8, 8 positions, single row, 0.156" (3.96 mm) pitch, 600 VAC, gold-plated mating contacts, through hole, solder termination, friction lock.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.425\" (10.80mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 8 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.175\" (4.45mm) |
| Overall contact length | 0.700\" (17.78mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.400\" (10.16mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 644766-8: Gold-plated mating contacts (15.0 µin) rated 600 VAC, through-hole solder termination, and a friction-lock fastening system secure the mating receptacle.
The 644766-8 is listed as Obsolete by TE Connectivity AMP Connectors.
The 644766-8 is obsolete and sourced per RFQ through independent surplus channels. Availability and pricing are confirmed at the time of quotation against the BOM quantity.
