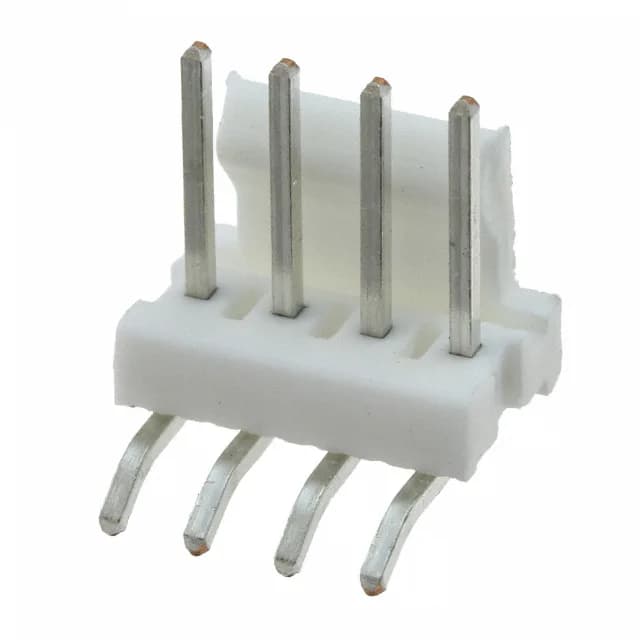

TE Connectivity AMP Connectors MTA-100 header, 644875-4, 4-position single-row, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 1 wall, friction lock, tin-plated male pins, UL94 V-0 natural thermoplastic, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.225\" (5.72mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
The 644875-4: Right-angle through-hole termination places the header parallel to the PCB, keeping the mated wire assembly low-profile for board-edge routing in tight enclosures. The friction lock on the shroud provides a positive detent with the mating MTA-100 receptacle — enough retention for moderate vibration but not a secondary latch like a TPA.
Sourced through independent distribution against RFQ.
It mates with MTA-100 single-row receptacle housings and the corresponding 22-26 AWG crimp terminals. The friction lock engages with the matching slot on the receptacle shroud.
