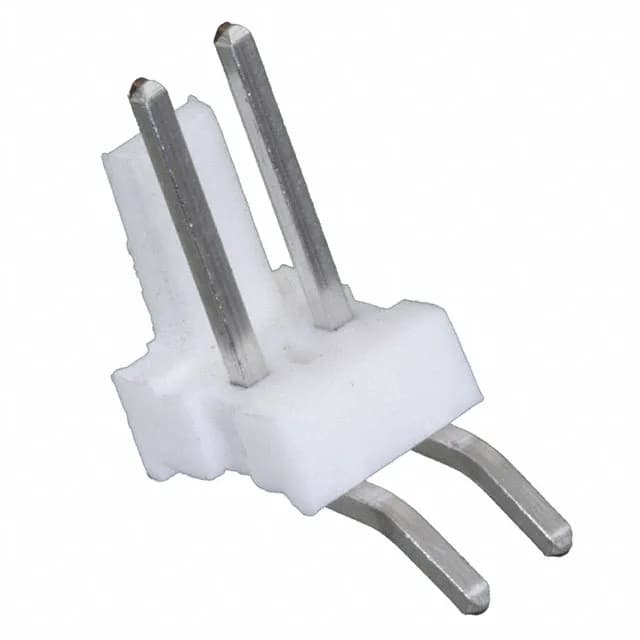

TE Connectivity AMP Connectors MTA-100 header, order code 644877-2, 2 positions, single row, 0.100" (2.54 mm) pitch, 250 VAC, tin-plated mating contacts, through-hole right-angle, kinked pin solder termination.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.225\" (5.72mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
The 644877-2 is the 2-position member of TE Connectivity's MTA-100 shrouded header line, designed for board-to-cable/wire interconnect in general-purpose applications. It mounts through-hole right-angle with kinked pin solder termination, carries tin-plated mating contacts, and is rated 250 VAC with current varying by wire gauge.
