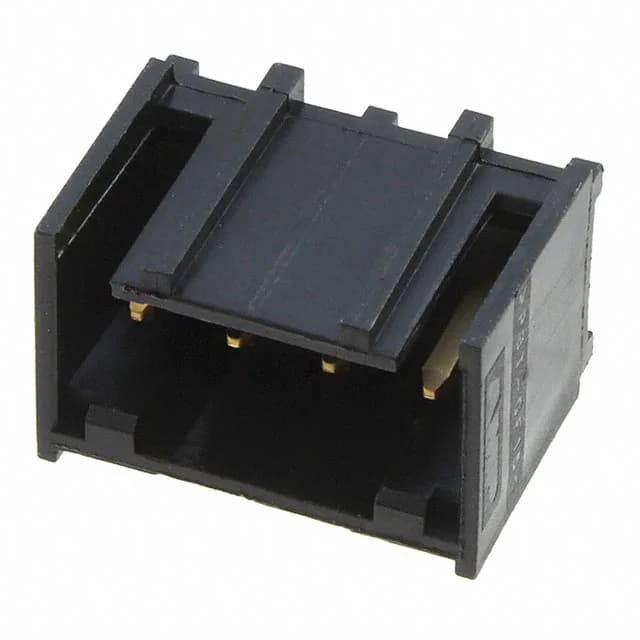

TE Connectivity AMP Connectors MTA-156 series, 4-circuit single-row shrouded header, 0.156" (3.96 mm) pitch, right-angle through-hole, gold-plated male pins, friction lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.455\" (11.56mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 4 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.300\" (7.62mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 647141-4: The mating contacts are gold-plated to 15.0 µinch (0.38 µm) over a copper alloy base.
No official successor is listed under the same base number (647628).
This is a Board to Cable/Wire style header — it mates with a corresponding MTA-156 receptacle housing that accepts crimp terminals. The square pin shape provides good solder fillet formation.
