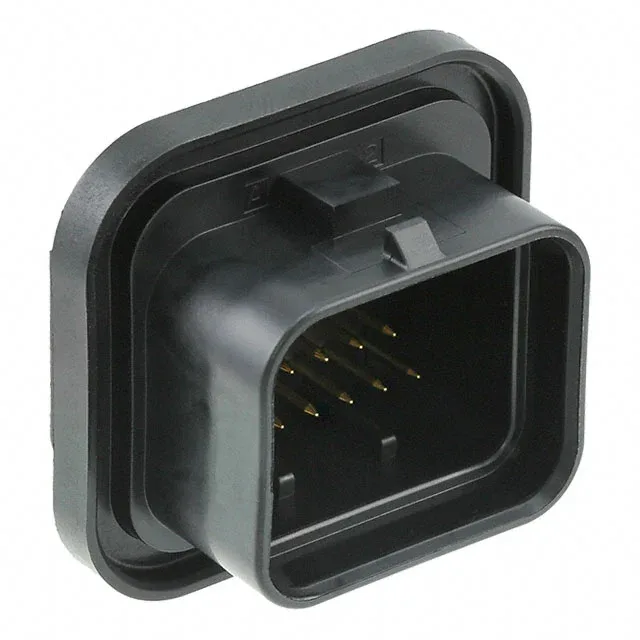

TE Connectivity AMP Connectors 6473418-1
MPN6473418-1
Active
CONN HEADER VERT 26POS 3MM
$20.79Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSuperseal
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Superseal |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Brass |
| Insulation height | 0.972\" (24.70mm) |
| Insulation material | Polyester |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Sealed |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Circular |
| Rows | 4 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 26 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
