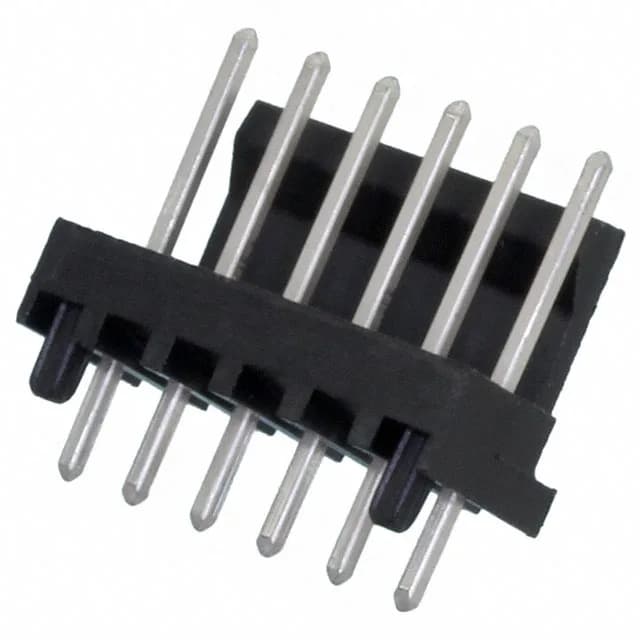

TE Connectivity AMP Connectors MTA-100 header, order code 647609-6, 6 positions, single row, 0.100" (2.54mm) pitch, 250VAC, tin-lead mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.347\" (8.81mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.135\" (3.43mm) |
| Overall contact length | 0.550\" (13.97mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.290\" (7.37mm) |
The 647609-6: The housing is black PBT glass-filled, UL94 V-0.
TE Connectivity lists the 647609-6 as Obsolete. Stock is limited to surplus channels; confirm availability at RFQ before committing a BOM line.
The housing material is rated UL94 V-0. RoHS and REACH status are not explicitly stated in the available records; confirm with the manufacturer for current compliance data.
