The 647648-7: Rated 600VAC, the header mates with MTA-156 receptacle housings and accepts wire gauges that determine the per-contact current limit. The UL94 V-0 nylon insulation handles -55°C to 105°C.

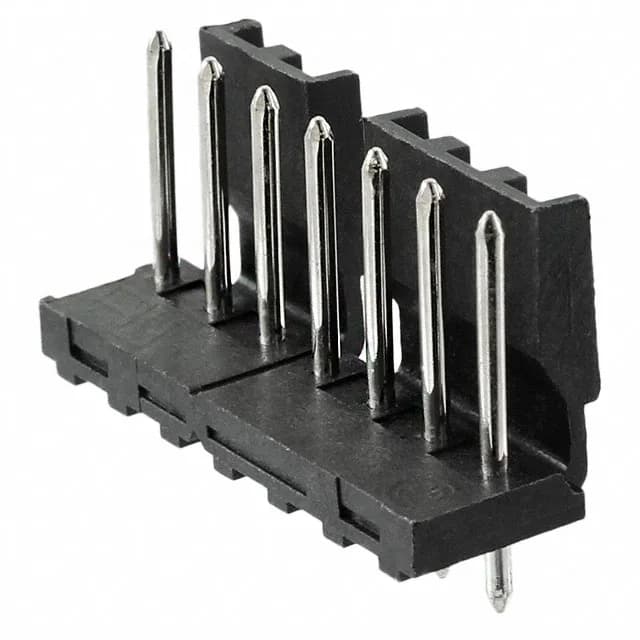

TE Connectivity 647648-7 MTA-156 Header, 7 Pos, 3.96mm
MPN647648-7
Active
TE Connectivity AMP Connectors MTA-156 header, order code 647648-7, 7 positions, single row, 0.156" (3.96mm) pitch, 600VAC, tin-lead plated mating contacts, through-hole solder termination, bulk.
$0.9600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.545\" (13.84mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 7 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.700\" (17.78mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.450\" (11.43mm) |
Product details
Frequently asked questions
What is the mating connector for 647648-7?
The header mates with MTA-156 receptacle housings that accept the corresponding crimp terminals.
