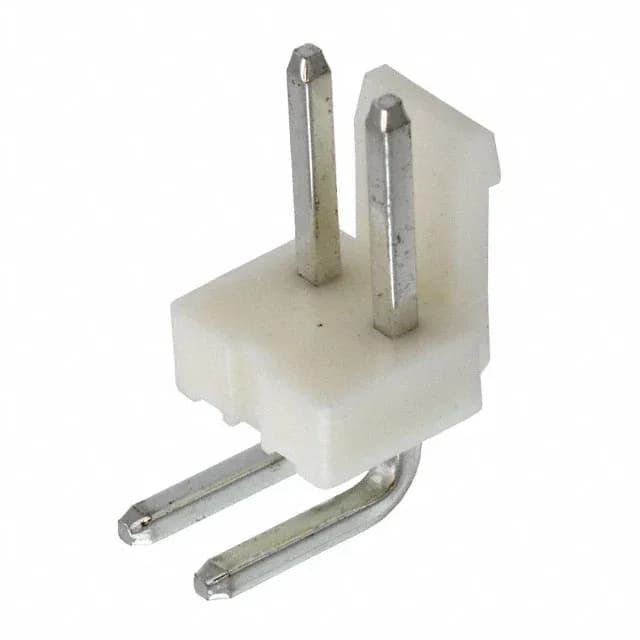

Economy Power 2-Position Right-Angle Header
It uses a 3.96mm pitch — wide enough to route traces between pads on a single-layer board without necking — and carries a 7.5A current rating per contact with tin-plated mating surfaces. Rated for 250VAC and -25°C to 105°C, with a UL94 V-0 nylon 6/6 housing — suitable for general-purpose industrial and lighting equipment where flame rating is required.
Pitch, Current, and Plating Trade-offs
At 3.96mm pitch, this header sits between the tighter 2.85mm pitch of the 1394090-1 and the wider 4.20mm pitch of the 4-1775099-7. The wider pitch allows more board-level routing space per circuit but limits position count in a given board edge length. Compared to the 4-1775099-7 (9A, 4.20mm pitch, 2-row, 20 positions), this part is a lower-current, single-row option for simpler harnesses. The 1394090-1 (2.85mm pitch, 6 positions) offers higher density but lower current capacity — no current rating is listed for that peer.
