Right-angle 6-position header with friction lock for wire-to-board

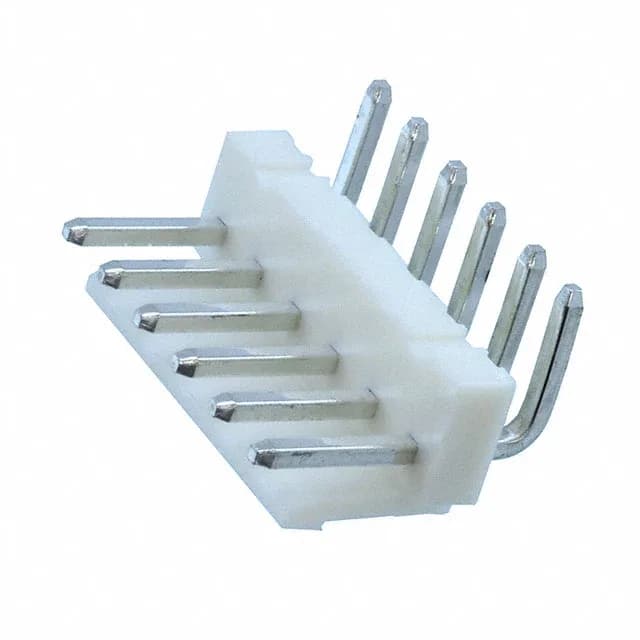

The 647676-6 is a 6-position, single-row, right-angle through-hole header from TE's Economy Power series, pitched at 3.96 mm.
Tin plating and 80 µinch thickness: mating cycle reality
The 80 µinch thickness is above flash tin (typically 30–40 µinch), giving better wear resistance during those limited cycles, but it still cannot match gold's performance in high-cycle or corrosive environments.
Board layout fit: right-angle through-hole, 3.96 mm pitch
The contact length on the mating side is 0.338" (8.59 mm), and the solder post length is 0.142" (3.60 mm) — standard dimensions for a 1.6 mm-thick board.
