Active sourcing — no lifecycle risk

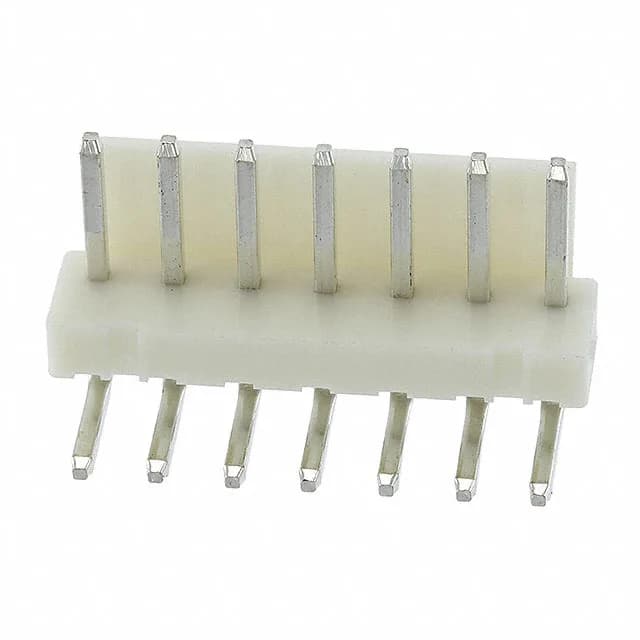

The 647676-7: ROHS3 compliant;.
Pitch, circuit count, and board footprint
0.156" (3.96mm) pitch — the board footprint matches the standard Economy Power receptacle series. 7 positions loaded all, single row. Contact length — post is 0.142" (3.60mm), mating length is 0.338" (8.59mm).
Current, voltage, and contact finish
Rated 7.5A per contact at 250VAC — the tin-plated brass contacts carry 80µin tin on both mating face and post.
Single-wall shroud and friction lock
Shrouded one wall — the shroud protects the pins on one side and guides the mating receptacle.
