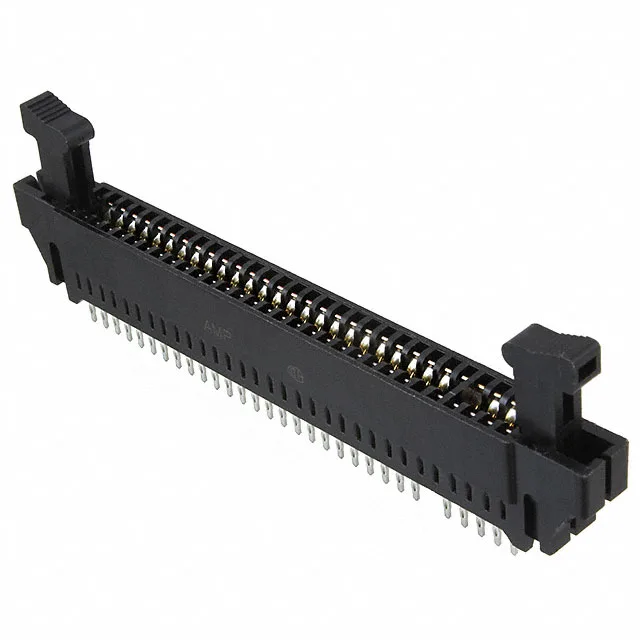

TE Connectivity AMP Connectors 6489651-2
MPN6489651-2
Active
CONN EDGE DUAL FML 62POS 0.100
$4.87Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesStandard Edge II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Standard Edge II |
| Card type | Non Specified - Dual Edge |
| Mounting | Free Hanging (In-Line) |
| Operating temperature | -55°C ~ 85°C |
| Color | Black |
| Contact material | Copper Alloy |
| Material - insulation | Polyester, Glass Filled |
| Pitch | 0.100\" (2.54mm) |
| Gender | Female |
| Package | Tube |
| Features | Latches |
| Read out | Dual |
| Termination | Solder Eyelet(s) |
| Card thickness | 0.054\" ~ 0.070\" (1.37mm ~ 1.78mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 62 (61 Loaded) |
| Contact finish thickness | 15.0µin (0.38µm) |
