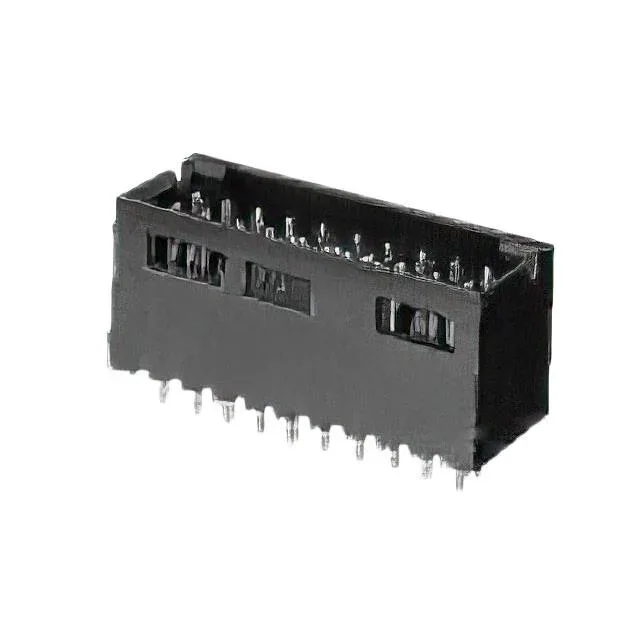

TE Connectivity AMPMODU Mod II, 7-103168-0, header, 44 positions, 0.100" (2.54mm) pitch, 2 rows, shrouded 4-wall, through-hole, gold mating finish, 3A, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 44 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 7-103168-0 is a 44-position, 2-row header from the AMPMODU Mod II series, built for board-to-board or cable interconnects.
The 0.440" (11.18 mm) insulation height leaves clearance for components on the board under the header body. In a tight enclosure, that z-height budget matters when routing traces under the connector.
ROHS3 compliant, UL94 V-0 rated housing.
Submit an RFQ through this listing; current pricing and lead time are confirmed at quote time. No stock-holding claim — availability is verified per inquiry.
The 4-wall shroud accepts the mating housing; the detent lock engages with the corresponding slot on the receptacle.
