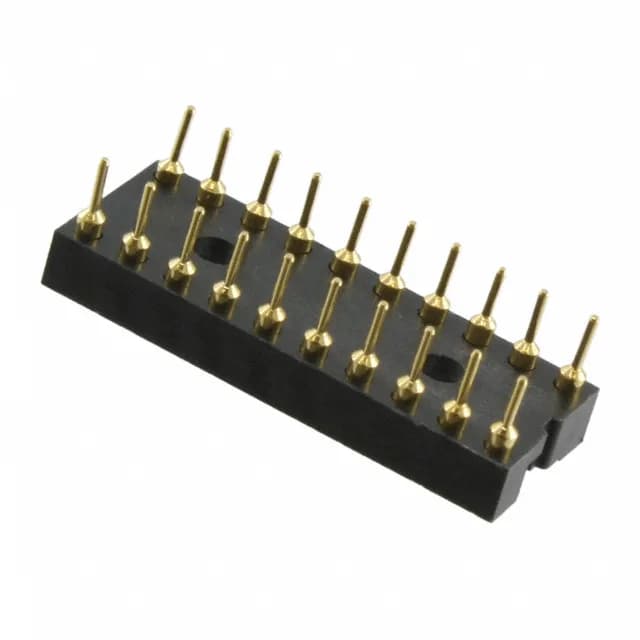

TE Connectivity AMP Connectors Series 500 DIP header, order code 7-1437531-8, 20 positions (2 x 10), 0.100" (2.54mm) pitch, gold mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 500 |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 125°C |
| Contact material - post | Copper Alloy |
| Contact material - mating | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Number of positions or pins | 20 (2 x 10) |
The 7-1437531-8: UL94 V-0 rated closed-frame housing.
TE Connectivity has designated the 7-1437531-8 as Obsolete. No official successor or direct pin-compatible replacement is recorded from the manufacturer.
