TE Connectivity AMP Connectors 7-188275-4 — Female Socket Headers

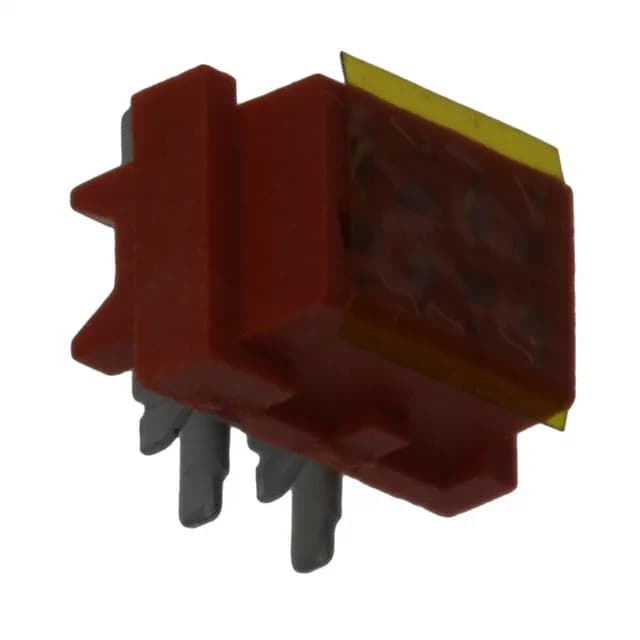

7-188275-4 TE Micro-MaTch 4-Pos 0.1" Tin SMD Receptacle

MPN7-188275-4
Active

TE Connectivity AMP Connectors Micro-MaTch, 4-position 2-row receptacle, 0.100" (2.54 mm) pitch, tin mating finish, SMD solder termination, Tape & Reel, -40°C to 105°C, UL94 V-0.

$0.7617Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

7-188275-4 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating100VDC
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.209\" (5.30mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled
Material flammability ratingUL94 V-0

All specifications

7-188275-4 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place
TerminationSolder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions4
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingTin

Product details

The 7-188275-4: All 4 positions are loaded, meaning no empty pin cavities to account for in the routing.

SMT line compatibility

The SMD termination and glass-filled PA46 housing (UL94 V-0) withstand reflow profiles typical for tin-plated contacts.

Mating and signal duty

Tin-on-tin mating finish is rated for moderate cycle counts — suitable for harness connections that are mated during assembly and rarely disconnected in the field. Rated for 100 VDC, covering typical signal-level and low-power circuits in automotive and general-purpose applications.

Frequently asked questions

Where can I buy 7-188275-4 and how do I get a price?

This part is sourced through independent distribution. Submit an RFQ for current availability and pricing — no stock-holding claim is made here.
