TE Connectivity AMP Connectors 7-188275-8 — Female Socket Headers

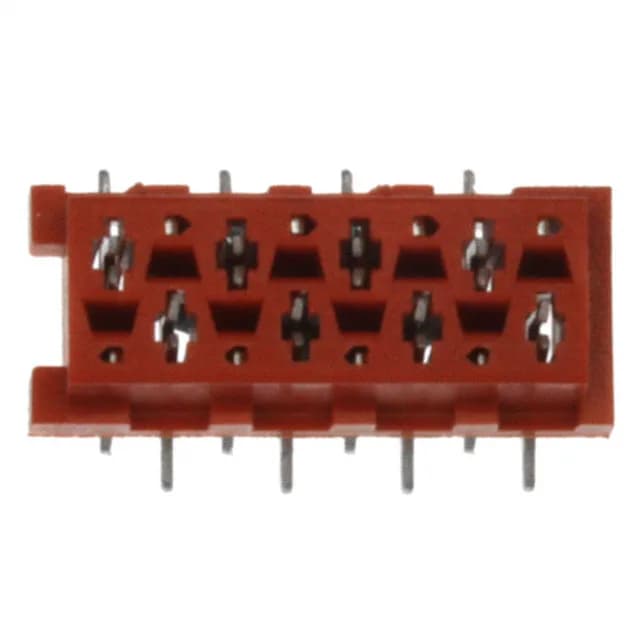

7-188275-8 TE Connectivity Micro-MaTch 8-Position Receptacle

MPN7-188275-8
Active

TE Connectivity AMP Connectors Micro-MaTch receptacle, 8 positions, 2 rows, 0.100" (2.54 mm) pitch, tin-on-tin contacts, surface mount, -40°C to 105°C, UL94 V-0, ROHS3 compliant.

$1.2536Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 7-188275-8 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

7-188275-8 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating100VDC
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.209\" (5.30mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled
Material flammability ratingUL94 V-0

All specifications

7-188275-8 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place
TerminationSolder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingTin

Product details

8-position dual-row receptacle at 0.100" pitch

The 7-188275-8: The forked contact design mates with a 0.025" square pin header from the same series. Rated for board-to-board or cable applications, the connector uses a push-pull fastening system — no locking latch, so it is suited for low-vibration environments where accidental unmating is not a risk.

Tin-on-tin contact finish — mating cycle trade-off

Surface-mount termination with pick-and-place features

The receptacle is surface-mount with solder termination, supplied on tape and reel (cut tape available). The pick-and-place feature allows automated assembly — the part includes a vacuum pickup area for the nozzle. The red polyamide (PA46) housing is glass-filled for dimensional stability during reflow.
