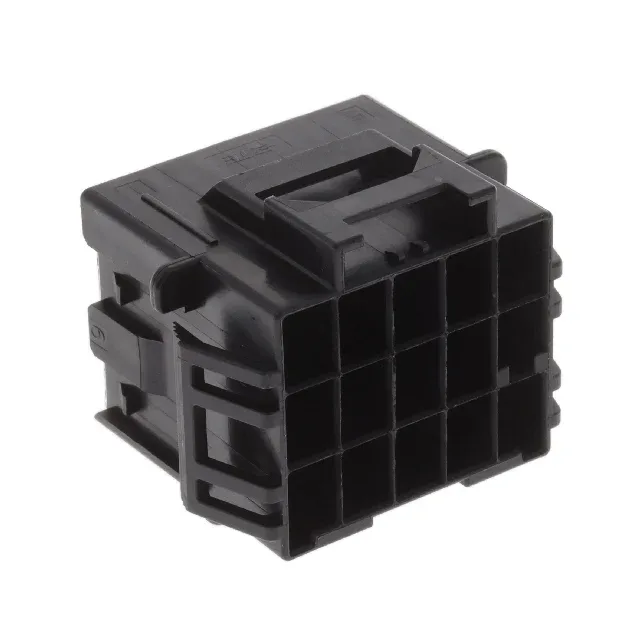

15-Position Power Triple Lock Receptacle Housing for High-Temp Environments
The 6.00 mm pitch and 8.10 mm row spacing provide the creepage distance needed for power-level voltages without forcing an oversized connector footprint.
What the 6.00 mm Pitch and 3-Row Layout Mean for the Build
At 6.00 mm, each cavity has room for a tab contact rated for higher current than a finer-pitch connector would allow, making this housing suited for power distribution rather than dense signal routing. The three rows, with a 0.319" (8.10 mm) row spacing, spread the 15 positions across a rectangular footprint that fits a standard panel cutout.
This housing ships with no contacts — the note "Contacts Not Included" means the buyer must order the matching Power Triple Lock crimp tab terminals separately. The housing accepts tab-type contacts terminated via crimp. For a production BOM, add the appropriate terminal part number for the wire gauge in the harness. The polyamide (PA) insulation material is rated UL94 V-0 and carries a Glow Wire Compliant feature, which is a gate requirement for IEC 60335 household appliance applications.
