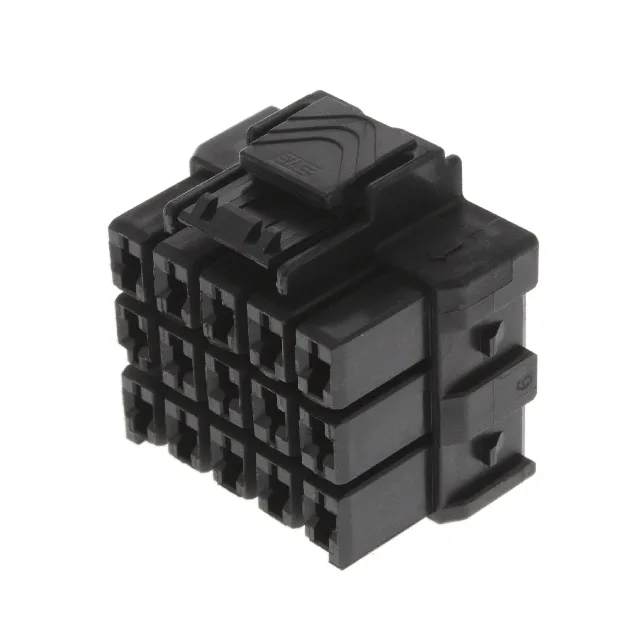

15-Position 3-Row Plug Housing for Power Triple Lock
The TE Connectivity 7-1971876-7 is a 15-position plug housing from the Power Triple Lock, High Temp series. It is a free-hanging (in-line) connector body that accepts female blade socket crimp terminals — the contacts are ordered separately and must be specified for the wire gauge. The 6.00 mm pitch and 8.10 mm row spacing place this in the power-class interconnect range, not fine-pitch signal. Three rows of five positions give the harness builder a compact 15-circuit bundle in a single housing, with the latch holder fastening type providing positive retention against vibration.
Wide-Temp Polyamide Housing for Harsh Environments
The housing is molded from polyamide (nylon) and rated for -55°C to 150°C operating temperature.
Contacts: Not Included, Order Separately
The listing explicitly notes Contacts Not Included. The housing arrives empty.
Mating Half and System Compatibility
This plug housing mates with the corresponding Power Triple Lock, High Temp receptacle header (through-hole or right-angle, depending on the board layout). The 6.00 mm pitch and 8.10 mm row spacing are consistent across the series, so any Power Triple Lock header with the same 15-position, 3-row configuration will mate. Confirm the header's mounting style (board-mount vs. panel-mount) and contact plating (gold vs. tin) for the application's current and cycle-life requirements.
