The 7-215079-4: Kinked pins provide retention during wave soldering — the bend holds the component in place before the solder joint solidifies, reducing tombstoning and skew on the board. The 0.122" (3.10 mm) post length mates with standard 1.6 mm-thick PCBs; the insulation height of 0.157" (4.00 mm) leaves clearance for trace routing under the body.

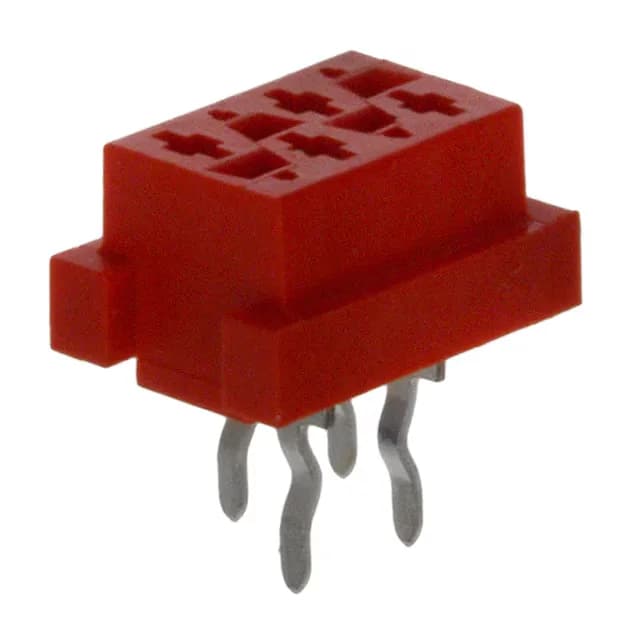

7-215079-4 TE Connectivity Micro-MaTch 4-Pin Receptacle
MPN7-215079-4
Active
TE Connectivity AMP Connectors Micro-MaTch receptacle, 4 positions, 2 rows, 0.100" (2.54 mm) pitch, tin-plated forked contacts, through-hole kinked-pin solder termination, red PBT/glass-filled housing, UL94 V-0, -40°C to 105°C operating range.
$0.7677Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -40°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.157\" (4.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What is the mating connector for 7-215079-4?
Confirm the header part number from the same series — the push-pull fastening type requires the matching housing keying.
