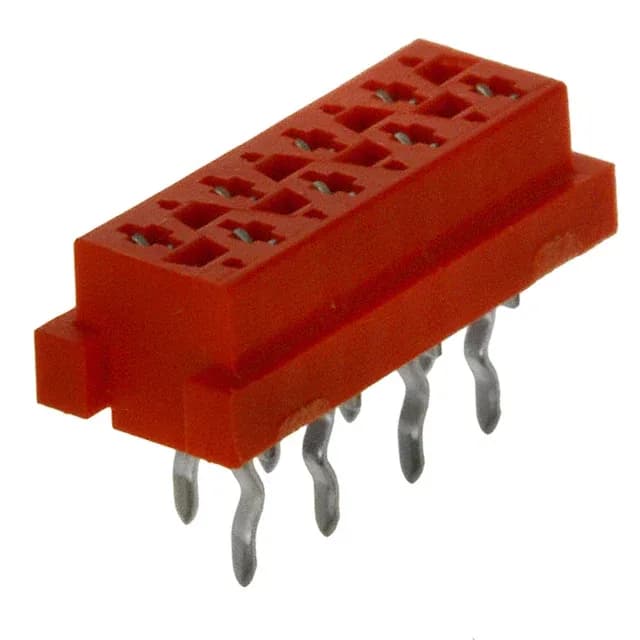

8-position, 2-row, 2.54mm pitch — board-to-board or cable
The red insulation colour is a visual identifier on the assembly line.
Tin contacts — 100VDC rating, limited reconnect duty
Termination is through-hole solder with kinked pins. The kink provides a press-fit retention in the plated hole during wave soldering, holding the connector in place before the solder solidifies. The contact post length is 0.122" (3.10mm), which should be checked against the PCB thickness and the solder fillet height.
