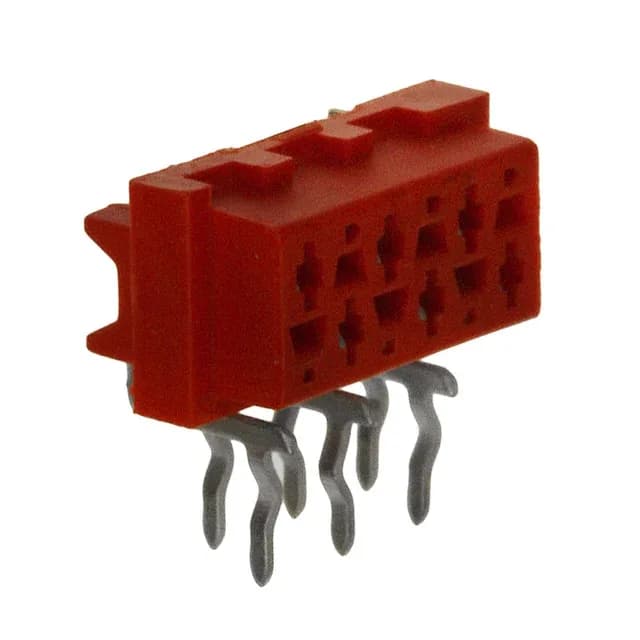

TE Connectivity AMP Connectors Micro-MaTch, 6-position right-angle receptacle, 0.100" (2.54 mm) pitch, tin-plated fork contacts, through-hole solder termination, UL94 V-0 red PBT housing, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
The 7-215460-6 sits between the 4-position (7-215460-4) and 8-position (7-215460-8) siblings in the same right-angle, tin-plated Micro-MaTch family. For a straight through-hole alternative at 6 positions, the 7-215079-6 offers the same contact finish and housing material but with a vertical orientation, which changes the board-edge clearance and mating axis.
The 7-215460-6 is sourced to order through our distribution channel. Submit an RFQ with your target quantity; availability and lead time are confirmed at quote time.
No — the 7-215460-6 has 6 positions while the 7-215460-8 has 8 positions. All other specs (pitch, plating, mounting, housing) are identical, so the 8-position version fits the same footprint but adds two circuits.
