TE Connectivity AMP Connectors 7-215464-4 — Pin Headers

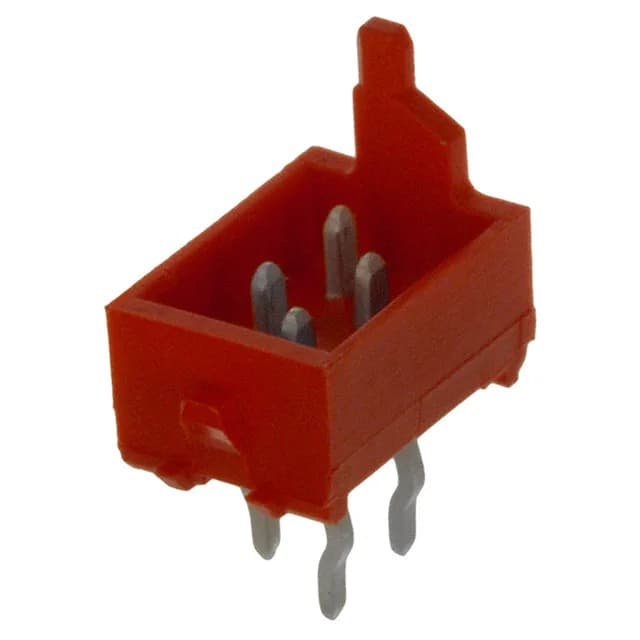

7-215464-4 TE Connectivity Micro-MaTch Header 4 Pos 2.54mm

MPN7-215464-4
Active

TE Connectivity AMP Connectors Micro-MaTch header, 7-215464-4, 4 positions, 2 rows, 2.54mm pitch, shrouded, latch lock, through hole, press-fit/solder termination, tin contacts, 1.5A, 230V, UL94 V-0, red insulation, -40°C to 105°C.

$1.0500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

7-215464-4 key specifications
ParameterValue
SeriesMicro-MaTch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock
Voltage rating230V
Current rating1.5A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorRed
Insulation height0.142\" (3.60mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled

All specifications

7-215464-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows2
Pitch0.100\" (2.54mm)
Positions4
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingTin
Contact finish thickness - mating118.1µin (3.00µm)

Product details

2.54mm pitch, 4-position shrouded header

The 7-215464-4: The contacts are tin-plated brass, rated at 1.5A per circuit at 230V.

Press-fit and solder termination options

Termination is listed as both press-fit and solder. The press-fit option allows solderless assembly into plated through-holes, common in backplane or high-reliability builds where rework is a concern. The solder variant follows standard wave-solder processes. The contact post length is 0.122" (3.10mm) — confirm board thickness and plated-hole depth before layout.

Frequently asked questions

Where can I buy 7-215464-4?

The 7-215464-4 is sourced to order through our distribution network. Submit an RFQ with your target quantity and we will confirm availability and pricing at quote time. No stock-holding claim is made; each order is sourced fresh.

What is the mating connector for 7-215464-4?

The 7-215464-4 is a male pin header from the Micro-MaTch series. It mates with the corresponding Micro-MaTch female receptacle housing and crimp terminals. Confirm the circuit count and pitch match your receptacle before ordering.
