TE Connectivity AMP Connectors 7-215464-8 — Pin Headers

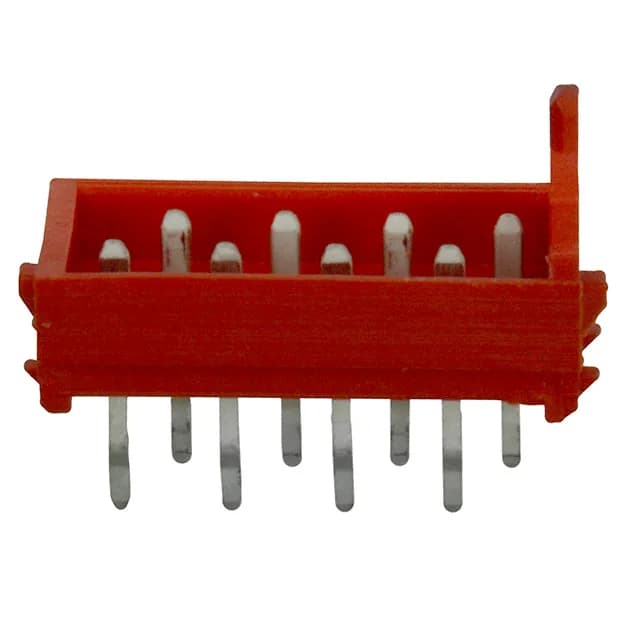

7-215464-8 TE Connectivity Micro-MaTch Header 8 Pos 2.54mm

MPN7-215464-8
Active

TE Connectivity AMP Connectors Micro-MaTch series, 7-215464-8, 8-position, 2-row, 0.100" (2.54mm) pitch, shrouded header, male pin, through hole, press-fit or solder termination, latch lock, 1.5A, 230V, -40°C to 105°C, UL94 V-0, red PBT housing.

$1.4500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 7-215464-8 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

7-215464-8 key specifications
ParameterValue
SeriesMicro-MaTch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock
Voltage rating230V
Current rating1.5A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorRed
Insulation height0.142\" (3.60mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled

All specifications

7-215464-8 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageCut Tape (CT) Tape & Box (TB)
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingTin
Contact finish thickness - mating118.1µin (3.00µm)

Product details

8-position Micro-MaTch header with latch lock

This 7-215464-8 is an 8-position, 2-row header from TE's Micro-MaTch series on 0.100" (2.54mm) pitch.

Press-fit or solder — two termination paths

The header lists both press-fit and solder termination. Press-fit is a solderless connection — the compliant pin deforms into the plated through-hole, good for avoiding solder defects in high-reliability or rework-heavy assemblies. The contact length after the board is 0.122" (3.10mm).

Board footprint is standard 0.100" row spacing, 0.100" pitch between positions. The through-hole tails are 0.122" long; check your board thickness and plated hole diameter against the product drawing.

Frequently asked questions

What connectors mate with 7-215464-8?

It mates with Micro-MaTch female cable receptacles that have the mating latch slot. The 4-wall shroud and latch lock are the key alignment and retention features.

Does 7-215464-8 have a latch lock?

Yes, the fastening type is Latch Lock. It holds the mating connector without additional hardware, suitable for vibration-prone applications.
